100g water cooling enamel ozone generator tube with power supply

High concentration, high ozone conversion rate of enamel tube Small size, low power consumption, stable operation for a long time.enerzen plasma ozone generator tube 20G-400G for water treatmentent,stable ozone output


MOQ: 1set
FOB Price: Send your inquiry
Nearest Port: Guangdong, China
Trade Terms: FOB, CIF, CNF etc


Health KQ-Tech


Working voltage: AC220V/ 50HZ or AC110V/ 60HZ

Power consumption: 200-3000W Adjustable power

High voltage output: 3600V

Frequency waveform: sine wave

Ozone production: 20-400G/H

Ozone concentration (air source): 15~25MG/L

Ozone concentration (O2 source): 80~120mg/L

Cooling method:Water cooling for internal & external electrodes

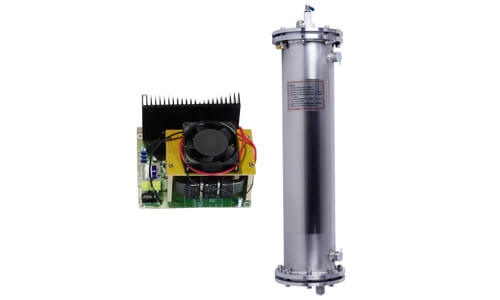

100g-400g enerzen plasma ozone generator tube

1.    Electrodes:

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output.

2.    Cooling way : Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.

3.    Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

4.    PLC controllable power supply : Good heat dissipation,High work efficiency, it can be control by PLC display, Input signal 0.8V~1.2V.


ozone tube generator (4)


Overcurrent and overheating protection, automatic width adjustment, manual width adjustment Adjustable frequency, not afraid of short circuit, support continuous work

High efficiency (conversion efficiency over 90%), power Low heat generation, low noise (or no), stable performance



It is driven by a dedicated integrated block, with high frequency and IGBT output. The power tube of the new circuit has anti-peak suppression, which eliminates the damage of the transistor caused by the anti-peak and prolongs the service life.

  1713520337652     1713520337679
