Ozone Analyzer

UVOZ-1200 ozone gas analyzer concentration monitor

high-precision ozone analyze, a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection


MOQ: 1 set
FOB Price: Send your inquiry
Detection range:0-300 g/m3
Display resolution:0.1 g/m3


Health KQ-Tech

Light source system: German long-life ultraviolet lamp (253.7 nm wavelength);

Detection range:0-200 g/m3(extensible 0~350mg/L);

Display resolution:0.01 g/m3;

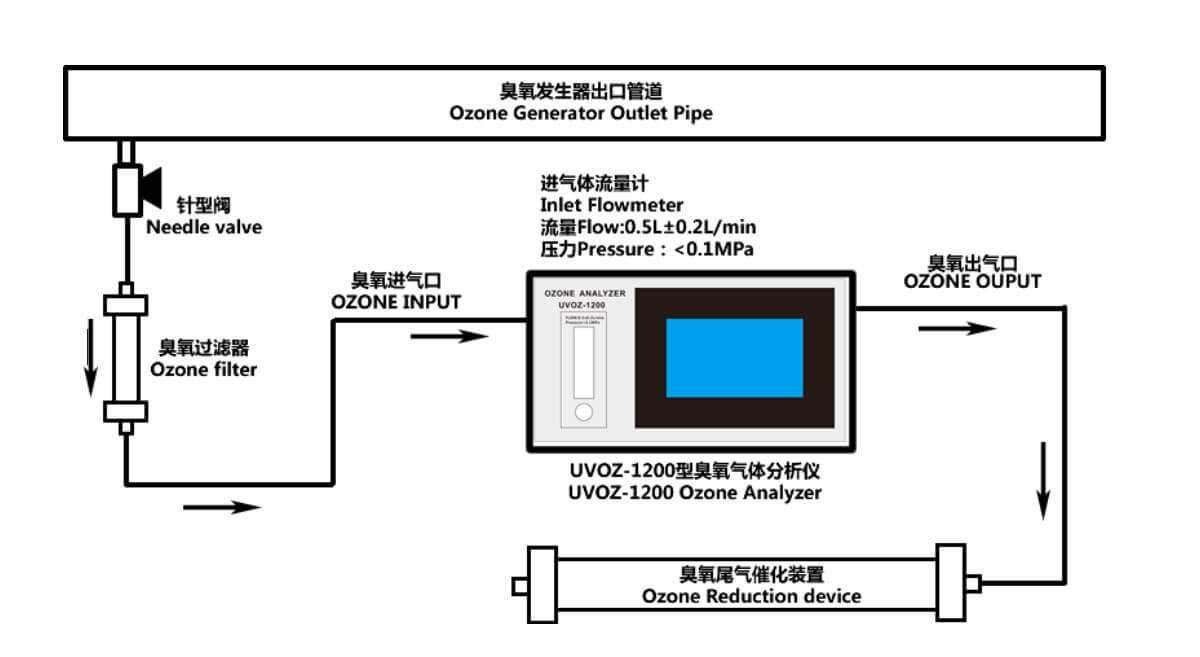

Input gas flow:1.2L+_0.2L/min;(extensible 0.1L~1.5L)

Input pressure:<0.1MPa;

Zero shift:<2%.FS ;

Responsive time:<1S

Sampling port diameter:Φ6(6mm*4mm)

The accuracy of detection:±3%

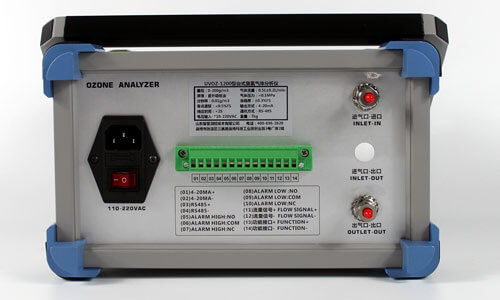

Communication mode: RS-485;

Output mode:4-20mA, linearity;

Power:AC220V/110V 50Hz/ 60Hz;


Weight: 6kg

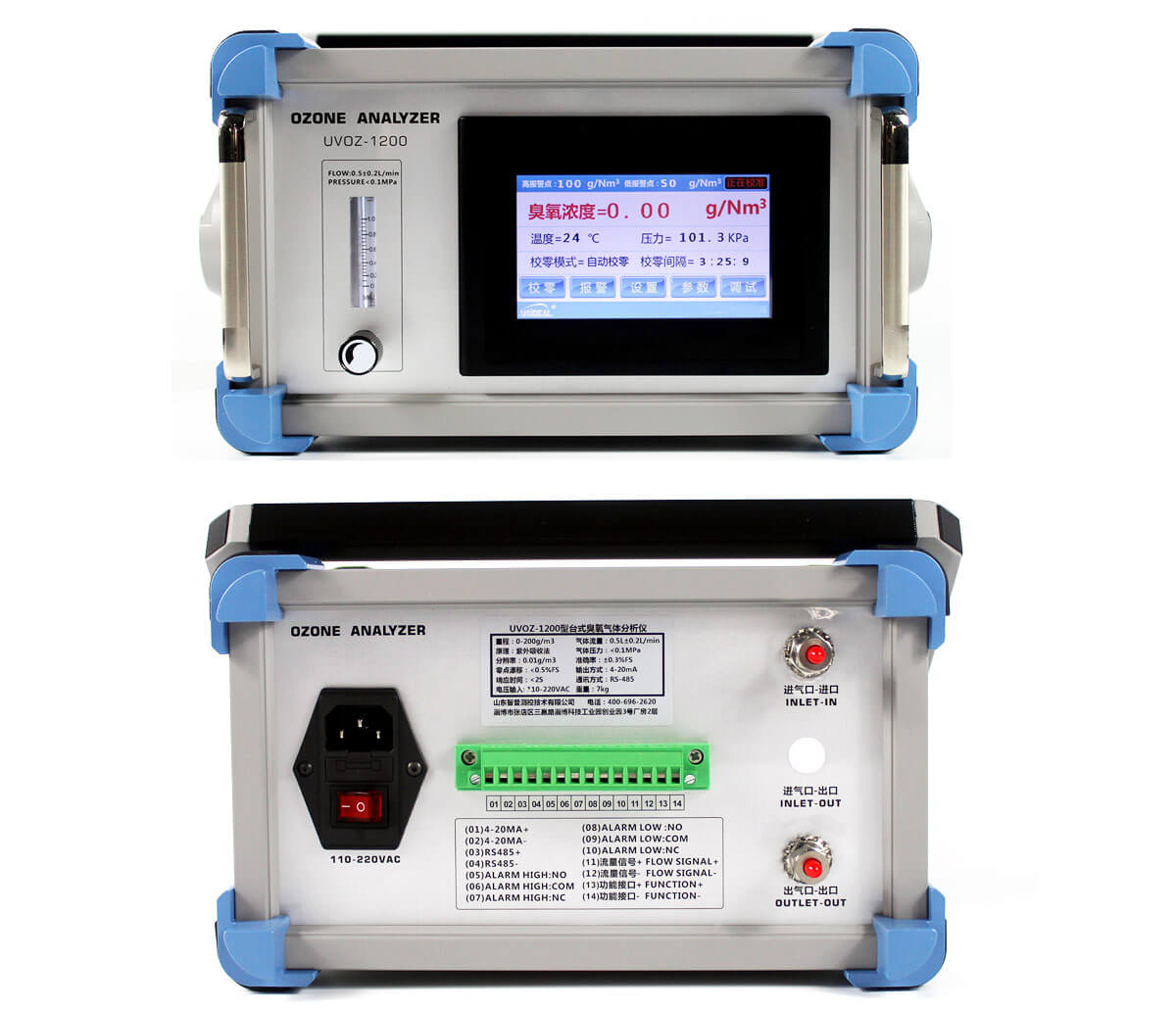

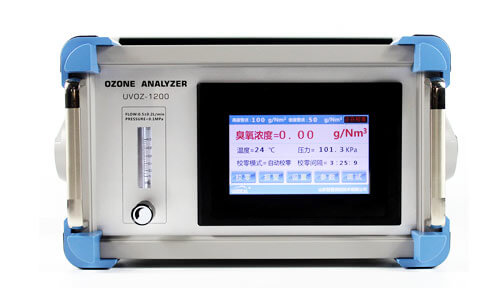

The ozone analyzer has a touch screen operation interface, which shows the real-time ozone concentration. And the touch screen is also with pressure & temperature compensation display. For the high concentration (g/Nm3)range, it has the function of flow input, which can display the output of the ozone generator in real time. The core componentadopts long-life UV light system with the high light transmittance quartz to prevent zero drifting from affecting the detection accuracy. It’s no need to close ozone inputting when zeroing to ensure the equipment can run continuously 24 hours.

• Fast response speed
• High measurement accuracy
• Good stability and repeatability
• Various parameters can be customized by the user.
• Simple operation
high-precision ozone analyze, a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection...






Focus On Safe Product

Health KQ-Tech
Long life
Small error


Health KQ-Tech


Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given


What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?

Effect requirements

For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?


What is your budget for the effect of the project? What equipment do we need to provide?
