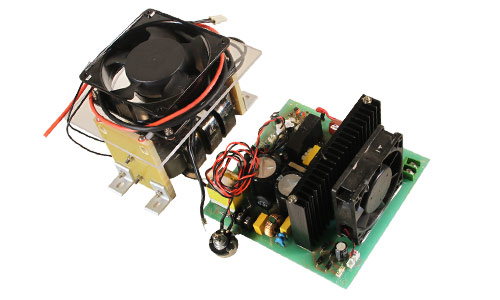

The high frequency ozone generator 30G/h power suplly from Health KQ-Tech are designed for larger commercial and industry applications. Providing an ozone output range from 10 to 50 grams per hour, these industrial strength ozone generators deliver tremendous value,performance and output capability in the most demanding conditions.

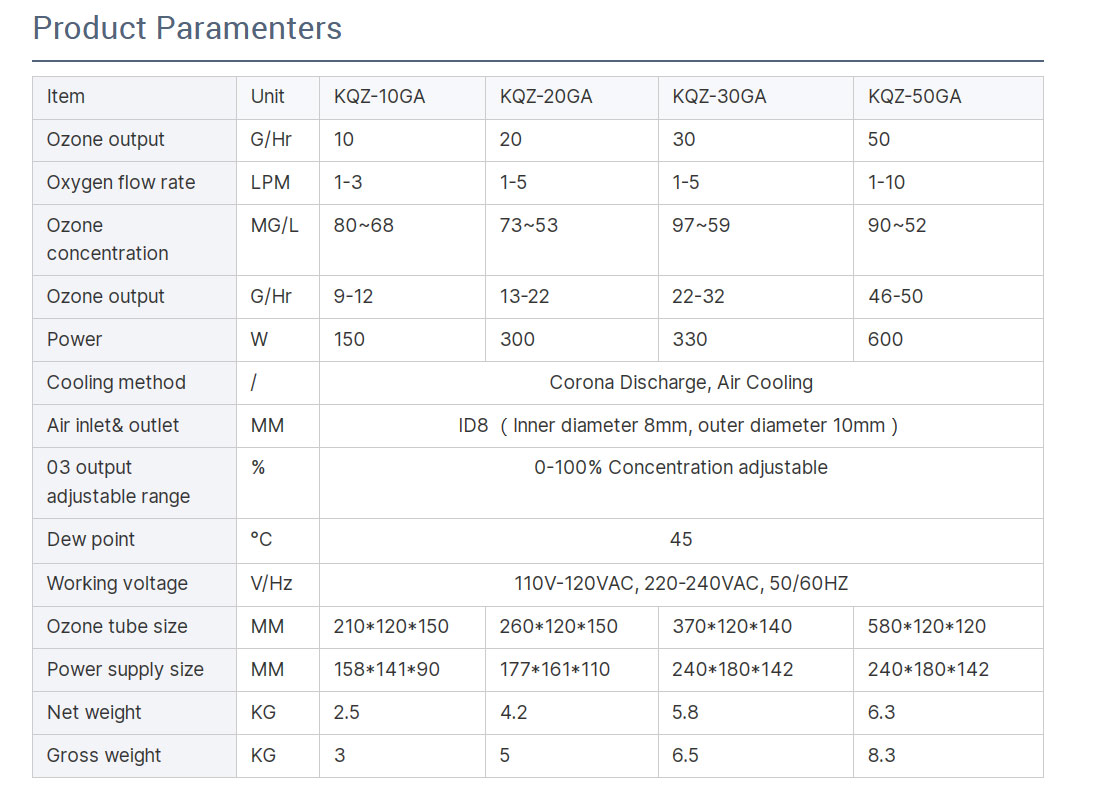

Working voltage: AC220V-50HZ or AC110V/60HZ
Power consumption: 100-600W
High voltage output: 6KV/12KHZ
Frequency waveform: sine wave
Ozone production: 10-50G/H
Ozone tube: Multiple specification options
Power supply: Multiple specification options
Ozone concentration (air source): 15~25MG/L
Ozone concentration (O2 source): 60~80mg/L
high frequency ozone generator 30G/h power suplly Product Overview
10 years long life high frequency ozone generator 30G/h power suplly for air and water
The corona discharge ozone generator from Health KQ-Tech are designed for larger commercial and industry applications. Providing an ozone output range from 10 to 50 grams per hour, these industrial strength ozone generators deliver tremendous value,performance and output capability in the most demanding conditions.
Designed and engineered from the ground up, Health KQ-Tech offers a series of Ozone tube and stable power supply designed to meet your specific application.
PRODUCT SPECIFICATIONS
● Appearance patented product, patent number: No. 8335415
● Good heat dissipation effect, extremely low ozone attenuation rate and high ozone concentration.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption. （100W-600W)
● Designed & tested specially for Water and Air.
● Easy to maintain and install.(Air cooling)
● Use high-frequency & Intelligent power supply inverse system, (ozone output can be changed on demand to achieve accuracy control).
Outstanding Technical Properties

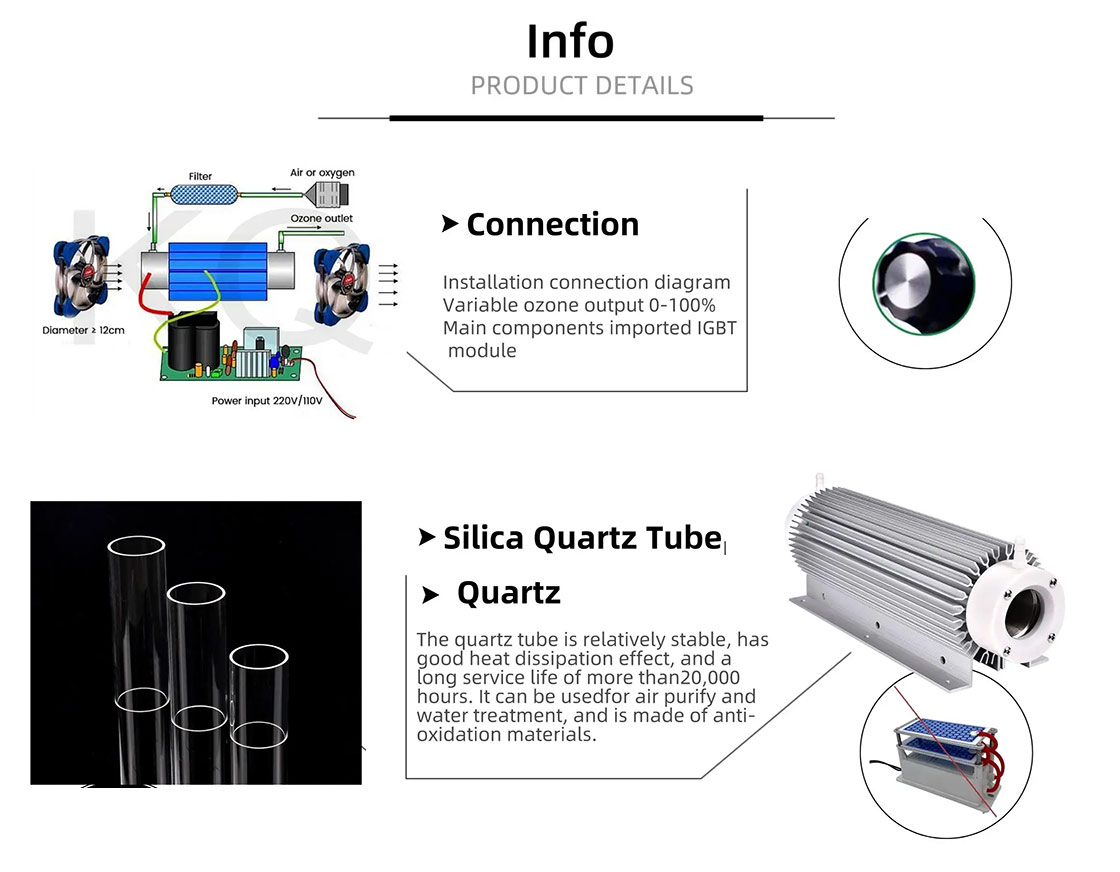

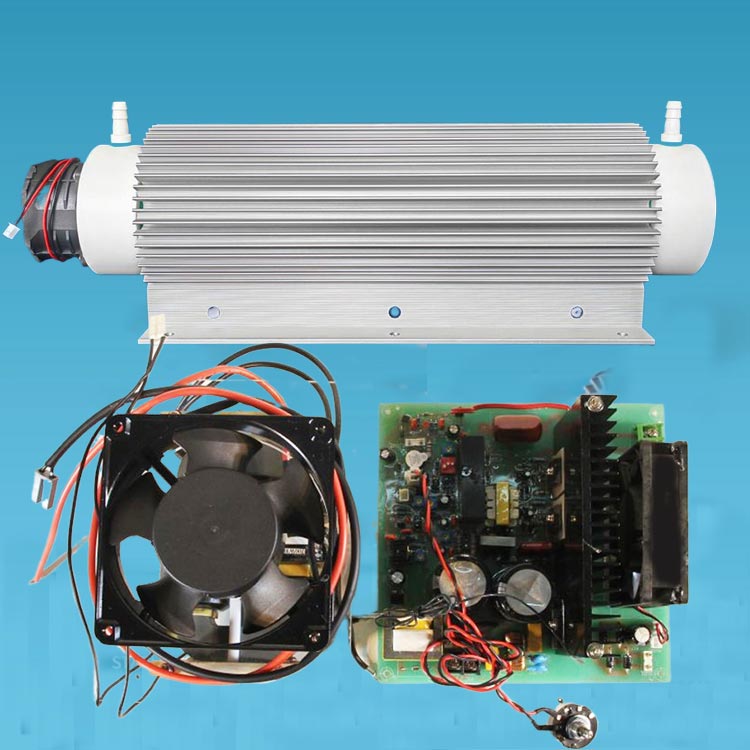

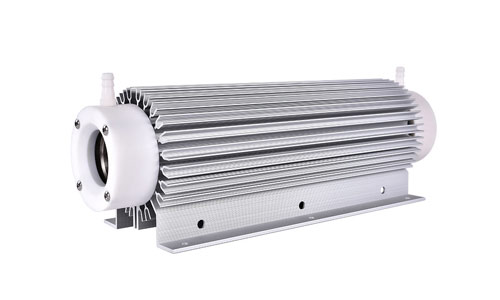

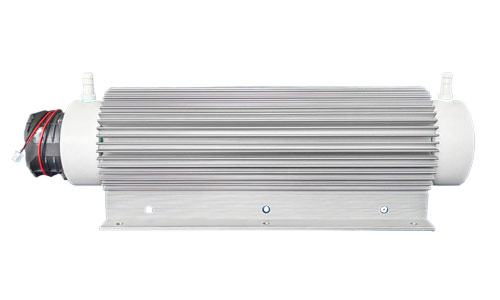

1.Adopting a new design, large diameter, better heat dissipation effect, external 12V DC cooling fan can absorb the heat generated in the tube.
2.Made of high-purity quartz material, the internal electrode is SS 316L, which is the best anti-oxidation material to ensure many years of operation.

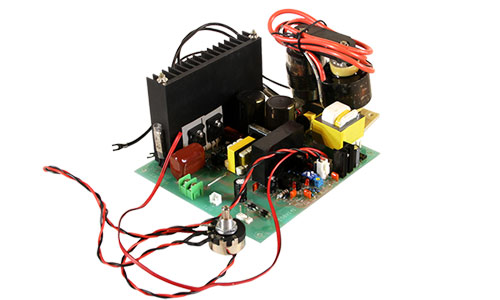

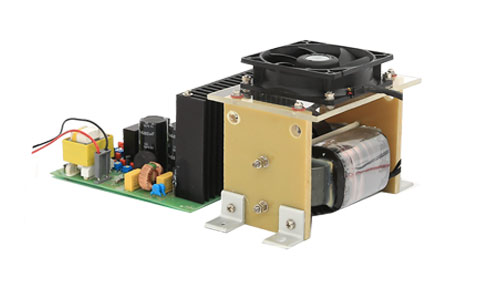

3.Separate design of high-voltage package and power board, more stable and durable
Overcurrent and overheating protection, automatic width adjustment, manual width adjustment Adjustable frequency, not afraid of short circuit, support continuous work
High efficiency (conversion efficiency over 90%), power Low heat generation, low noise (or no), stable performance。
Why Choose Health KQ-Tech Ozone Generator?
●Use Teflon plastic material that is durable, ozone resistant, heat resistant up to 327oC, insulating, unaffected by magnetic fields
● Aluminum alloy material for better heat dissipation, reducing ozone capacity decline
● The automatic temperature sensor is safe, protect continuously 24/24h
● Can flexibly adjust Ozone capacity (0 Min-Max)
● Silica quartz tube has high dielectric constant, dielectric value, low coefficient of thermal expansion
● Long working life（10 years long life）
● Stable& efficient output
● Compact and smaller footprint.
● Cool operation with low heat generation.
● Super low production & field failure rates.
Main fuctions
* Ozone disinfection application area is wide and high-efficiency : it has a strong killing effect on Escherichia coli,
Staphylococcus aureus, fungi, and stubborn hepatitis B virus.
* Good diffusion of ozone disinfection: fully contact with bacteria and viruses in the air, no sanitation dead corners, fresh air.
* Ozone disinfection has no secondary pollution: excess ozone will be naturally decomposed into oxygen after disinfection, no
residue, no secondary pollution.
The range ofapplication
* Sterilization and disinfection: food factories, water tanks, sterile clean rooms, laboratories, laundry rooms...
* Deodorization and mildew removal: basements, garages, storage rooms, hotels, entertainment venues...
* Industrial use: environmental test chamber, cutting fluid treatment agent...
Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given
What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?
For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?
What is your budget for the effect of the project? What equipment do we need to provide?
