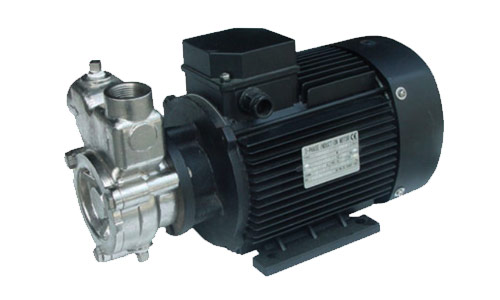

Utilize the special stirring function of the Vortex pump to mix gases difficult to dissolve in water, or two or more kinds of liquid with high-performance pressure. The stirring technology of the Gas-Liquid Mixing Pump has greatly simplified traditional stirring technology, which can not only make device miniaturization realized but also save investment costs.
Head of delivery: 40M/50M
Flow rate: 1T/Hr, 2T/Hr, 6T/Hr, 12T/Hr
Water input size: 0.75’’ / 1’’/ 1.5’’/ 2’’
Water output size: 0.5’’/0.75’’/1.2’’/1.5’’
Power: 0.55Kw/1.1Kw /3Kw/5.5Kw
Voltage: 380V/220V/380V /220V/380V/380V
Speed : 2900r/min
Application
- Air suspension treating equipment, ozone water preparing equipment, and biological treatment equipment.
- Feeding of heating or cooling medium for various temperature adjusting devices.
- Various filters: sucking or high pressure transferring low viscosity liquid from an underground tank, such as gasoline and various solvent.
- Misting treatment of clear water, pure water, foods, chemical solution, and waste solution.
- Strict applications (continuous running, abrupt variation in hydraulic pressure): such as small-scale stream boiler, high building water supply, high-pressure water injection to the high-pressure tank, and suction from vacuum tank.
- Sampling from river or tank, transfer foamable liquid, transfer liquid through the long and horizontal pipeline, where air pockets likely occur.
Working condition:
- It uses to deliver the clean and low-viscosity liquid or liquid that contains extra-fine foreign matters
- Liquid temperature: -150C ~ +1200C
- Maximum ambient temperature: +400C
- Gas-liquid ratio 1:9 (Gas suction volume 8~10%)
- Inlet: horizontal, Outlet: Vertical
