Ozone generator water treatment of Applications

【Large Industrial Ozone Generator 1000G Equipment Usage】

Ozone is widely used in drinking water treatment, water reuse treatment, cosmetic container disinfection, aquaculture oxygenation disinfection, poultry farming, swimming pool water disinfection, sterile workshops, pharmaceutical and food factory disinfection, GMP certification, food preservation and storage, fruit and vegetable pesticide degradation, sewage treatment (hospital, food factory, electroplating plant and other industrial sewage and urban sewage deep treatment), industrial waste gas deodorization and other industries;（1000g 1KG ozone generator water treatment ）

Product Introduction

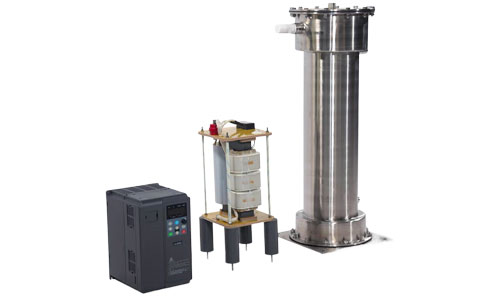

Core components of ozone generator: The core technology and equipment of the ozone system are the generator - drive power module, control transformer, and discharge tube, which directly affect the operating efficiency and reliability of the equipment.

• There are two sets of oxygen generator units that work automatically in a cycle;
• This series of products uses imported zeolite molecular sieves as adsorbents, uses pressure swing adsorption (PSA) to separate oxygen and nitrogen in the air, and filters out harmful substances in the air, so as to obtain high-concentration oxygen that meets medical oxygen standards. PSA oxygen generation equipment provides you with oxygen with a purity of 90%±5 to meet the needs of all parties, and the installation and operation costs are much lower than bottled or liquefied oxygen;
• Using air as raw material, no auxiliary materials are required, low power consumption, and low oxygen production cost;
• Stable performance, the entire set of gas circuits are low-pressure systems, and the operation is safe and reliable;
• Adjustable oxygen flow, large oxygen supply, and low noise;
• Easy to operate, make as needed, and continuous oxygen supply;
• 1000g 1KG ozone generator water treatment

High-efficiency discharge tube
Adopts a micro-gap dielectric barrier discharge design with multiple independent intellectual property rights and patented technologies - high-temperature resistant HQG non-glass structure discharge unit. This structure is extremely stable and has a long service life. It has the characteristics of high discharge efficiency and is not easily damaged by backwater.
The operating efficiency is greatly improved, and the safety and reliability of the continuous operation of the system are increased. The technical parameters of the ozone system, such as the maximum ozone concentration of 270mg/l, the rated ozone concentration of 150mg/l, and the unit ozone power consumption of 8.5kwh, have reached the advanced level of similar products.（1000g 1KG ozone generator water treatment ）

5kG 1000g 1KG ozone generator water treatment price

1000g 1KG ozone generator Appilication:
1.    Industrial wastewater treatment
2.    Hospital sewage treatment
3.    Domestic sewage treatment
4.    Bottled water production line
5.    Swimming pool water treatment
6.    Aquaculture water treatment
7.    Food factory space sterilization
8.    Exhaust gas deodorization treatment
9.    Poultry farming
10.    Cold storage

1000g 1KG ozone generator Features:
1.    High Quality Honeycomb quartz tube reaction chamber
2.    Cooling way : air + water cooling
3.    Feed outside oxygen machine or air compressor
4.    High Ozone concentration 80~120g/m3
5.    The system is compact and easy to install
