Ozone Destroyer/Ozone Gas Destroyer

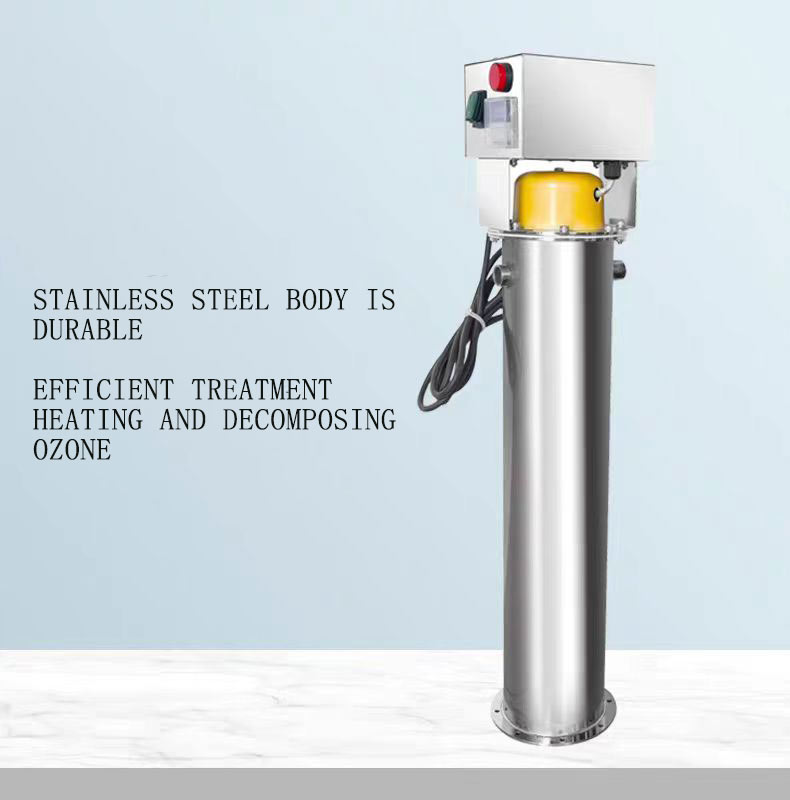

Ozone Destroyer, Stainless steel body is durable,Efficient treatment heating and decomposing ozone.The tail gas destructor is a heating -type integrated design that occupies small space. After the double -layer stainless steel is protected, ozone tail gas enters the reaction chamber, and the ozone molecules are decomposed when passing through the heating catalyst.

MOQ: 1set
FOB Price: Send your inquiry
Rated power:0-1.5KW
Product material:304 stainless steel
Inquiry

Specification

Health KQ-Tech

Product Name: Ozone Destroyer

Use power supply: 220V/50Hz

Rated power: 0-1.5kW

Work temperature: 45  °C - 150  °C

Lifting method: heating

Treatment of ozone quantity: 200g/h

Connection method: 4 points / 20mm (inner silk)

Product material: 304 stainless steel

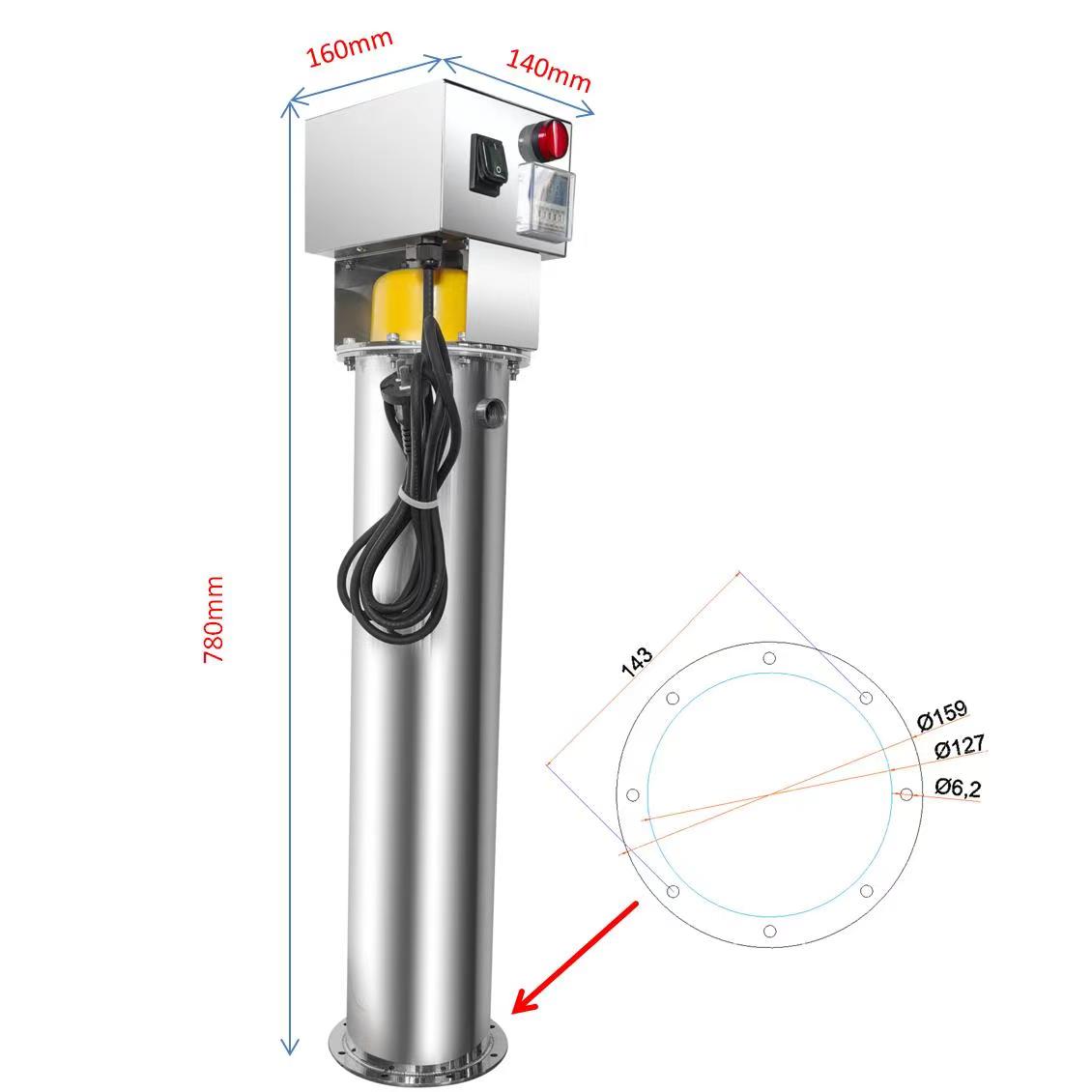

Appearance size: 780 * 160 * 140mm

Ozone Destroyer Product Overview


The tail gas destructor is a heating -type integrated design that occupies small space. After the double -layer stainless steel is protected, ozone tail gas enters the reaction chamber, and the ozone molecules are decomposed when passing through the heating catalyst.

The oxygen exhaust device has the characteristics of small volume, low power consumption, long life, and good effect.

Ozone Destroyer

It is mainly used to eliminate ozone exhaust and meet the national air pollution indicators. At the same time, the effect of ozone gas in the product is not affected by humidity and moisture, and does not need to be treated in biological treatment. This is unable to use catalysts, molecular sieves, activated carbon and other fillers.

The necessity of treatment of Ozone Destroyer:

1. Because ozone gas is strong oxidation, in addition to damage to certain items, it will also pollute the environment, stimulate human respiratory systems, and is not good for human health. Therefore, the ozone indicators in the air at home and abroad are restricted. my country's ozone concentration in the air must not exceed 0.2ppm, and the place of life must not exceed 0.15ppm.

2. When using ozone to treat various types of water, such as drinking water, swimming pool water, sewage, no matter which gas liquid contact device is used, more than 80 % of the ozone gas will be relieved from the water, becoming ozone exhaust. If this part of ozone is drained directly into the atmosphere or indoors, it will cause environmental pollution. The above conditions need to be treated with ozone destructors to treat the ozone tail gas, so that these residual ozone gases are immediately decomposed and then discharged into the atmosphere.

Scope of application of Ozone Destroyer products:

Scope of application of products: ozone flowing out of water during water treatment, disinfection cabinet / disinfection rooms in the water, ozone residual ozone residual ozone after disinfection in the disinfection room.
