water treatment ozone generator spare parts 110V 10G/hr

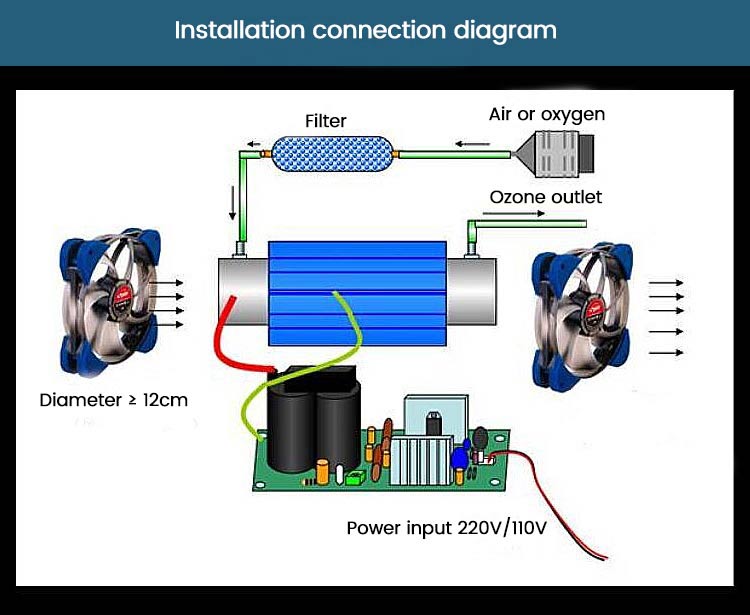

water treatment ozone generator spare parts 110V 10G/hr,KQ Environmental Tech provides 3G-50G air-cooled quartz tube ozone generator spare parts. It is easy to install. You only need to connect theozone generator spare parts to an air pump or oxygen, and add a fan to dissipate heat to ozone generator spare parts. It is small in size and light in weight, reducing more transportation costs. Reduce maintenance costs.

MOQ: 1 set
FOB Price: Send your inquiry
Nearest Port: Guangdong, China
Ozone output:10-50g/h custom


Health KQ-Tech

Working voltage: AC220V-50HZ or AC110V/60HZ

Power consumption: 80W

High voltage output: 6KV/12KHZ

Frequency waveform: sine wave

Ozone production: 10G/H

Ozone tube: 230*80*90mm

Power supply: 160*66*45mm

Ozone concentration (air source): 15~25MG/L

Ozone concentration (O2 source): 60~80mg/L

water treatment ozone generator spare parts 110V 10G/hr

New upgrade, efficient and durable,The ozone generator spare parts decay rate is very low, ozone concentration is high, and the ozone concentration can be up to 60mg/L, which is much higher than that of traditional products.

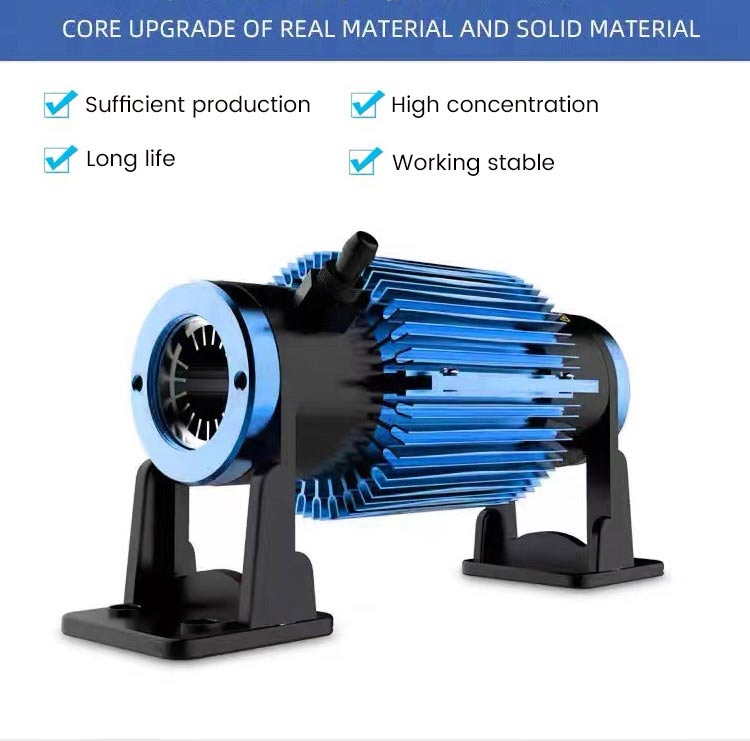

Thicken aluminum alloy heat sink

Thicken aluminum alloy heat sink, fast heat dissipation, not easy to corrode, wear-resistant and durable, slow heating speed

water treatment ozone generator spare parts 110V 10G/hr

 ozone generator spare parts  (6)

PLC control type ozone generator spare parts with power supply

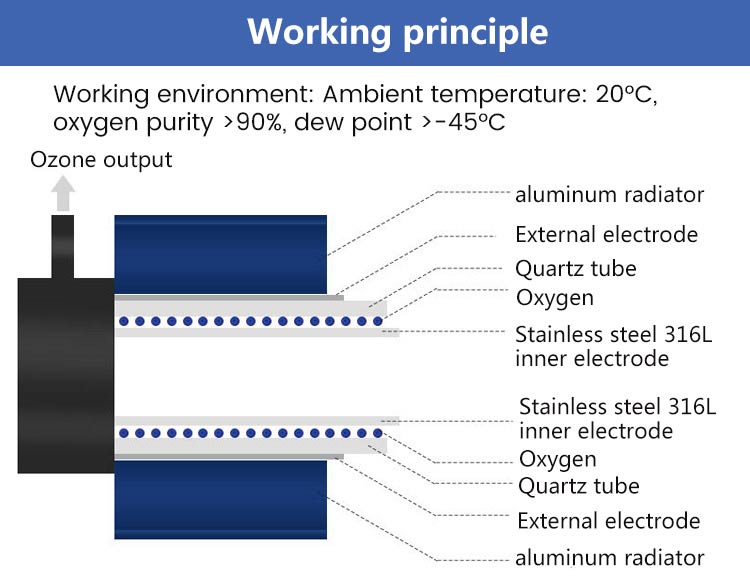

It is adopted Imported material of  high pure silica quartz external electrode,SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connections which are best anti-oxidation material for ensuring several years running.

Patented ozone generator spare parts power supply

High-frequency power supply unit, low energy consumption, high efficiency, with over-current and overheating protection, support for long-term continuous work, ensure product quality, good electrical conductivity, reduce interference.

Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.


 ozone generator spare parts  (5)

 ozone generator spare parts  (7)

water treatment ozone generator spare parts 110V 10G/hr

KQ Environmental Tech ozone generator spare parts are widely used in small water treatment disinfection, space disinfection, medical equipment, water treatment equipment

Focus On Safe Product

Health KQ-Tech
High standard
Hygienic and durable
Long lifespan
SS304 electrode
Low noise


Health KQ-Tech


Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given


What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?

Effect requirements

For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?


What is your budget for the effect of the project? What equipment do we need to provide?
