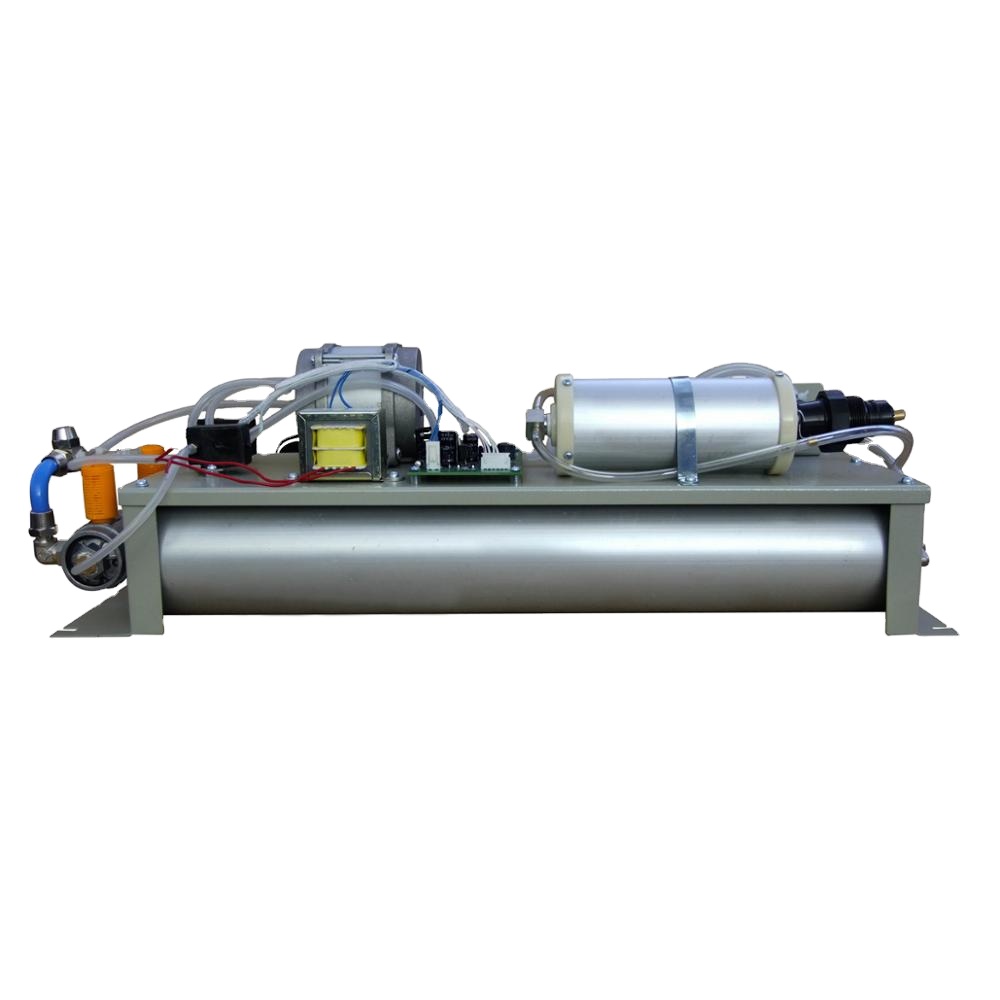

Industrial oxygen generation system Descriptions:
1. Simple structure, easy to operate, and stable oxygen output.
2. Material: zeolite/alumina; each unit can work independently, and oxygen output can reach 3-10 LPM or higher.
3. With a chiller for cooling air, no need additional refrigerant dryer for reducing cost.
4. Oxygen purity can be up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen, and other impurities output.
5. Parts with shipping: chiller, fan, and air inlet pipe.
6. Oxygen outlet pressure: 0.06-0.08Mpa.
Item | Unit | Zeolite Material | |||
Oxygen outpu | LPM | XY3L | XY5 | XY8L | XY10L |
O2 concentration | % | 90%±3% | |||
Power | W | 28 | 450 | 650 | 650 |
Pressure(inlet) | Mpa | 0.18-0.2 | 0.2 | ||
Pressure(outlet) | Mpa | 0.06-0.08 | |||
Temperature | ℃ | indoor temperature | |||
Relative humidity | % | ≤85% | |||
Noise | Db | ≤ 55 | ≤ 60 | ≤ 60 | ≤ 70 |
Dimension | mm | 550×160×80 | 550×180×80 | 610×310×120 | 610×310×120 |
Weigh | KG | 9.25 | 16.70 | 19.10 | 19.30 |
Complete Kit including oxygen unit,air compressor,chiller, flowmeter, power board etc
Features
1. The equipment uses Pressure Swing Adsorption (PSA) technology to separate
N2 and O2 from the air also can take off impurities in the air, to produce high-purity
purity O2 gas.
2. It’s an ideal equipment to replace O2 cylinder or liquid O2, with lower cost to save
your money and time for transportation cylinders.
3. Modular construction is the main point of our molecular sieve. Through the
different combinations of oxygen units, the oxygen output can be from 1 LPM to 160
LPM is even higher.
4. Low pressure, working pressure less than 2 KG.
5. It’s a good choice to use for human health, oxygen supply for animals/plants, oxygen
supply for ozone machines, glass or metal treatment, etc.
