industrial oxygen generators portable oxygen concentrator
Oxygen output: 3LPM, 5LPM, 7.5LPM, 10LPM , and 15LPM
Oxygen purity: The equipment produces 90%±3 purity O2 gas.
Oxygen outlet pressure: 0.06-0.08Mpa.
Material: Zeolite molecular sieve
Structure: 12 towers, twelve towers for the oxygen generation cylinder
Item |
Unit |

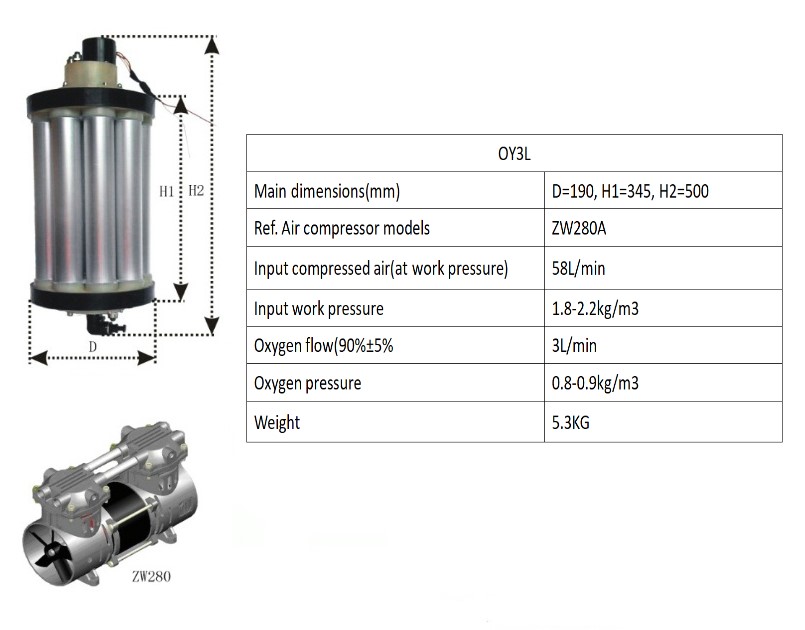

OY3L |

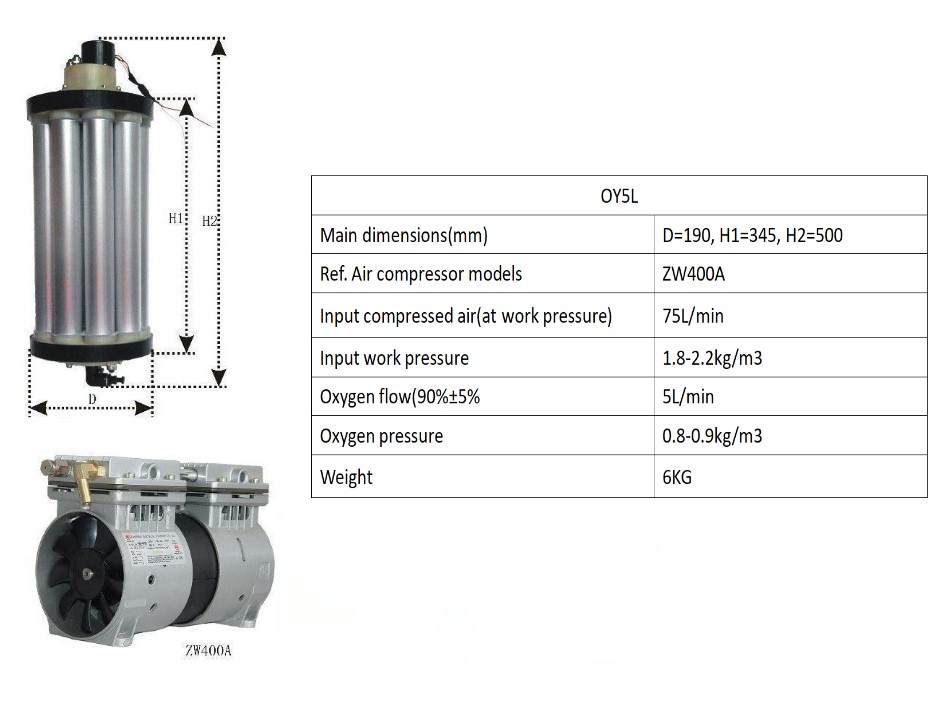

OY5L |

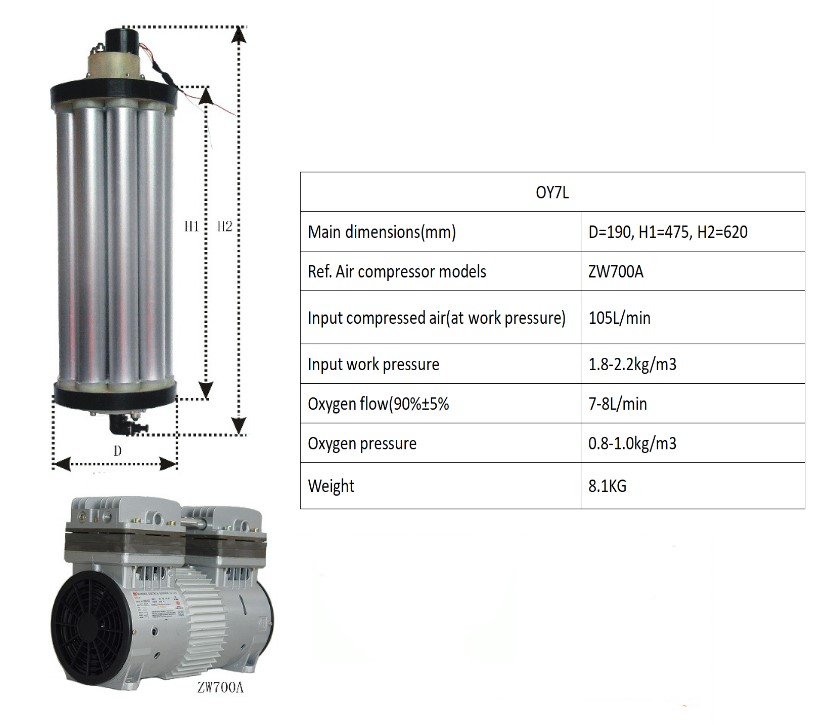

OY7L |

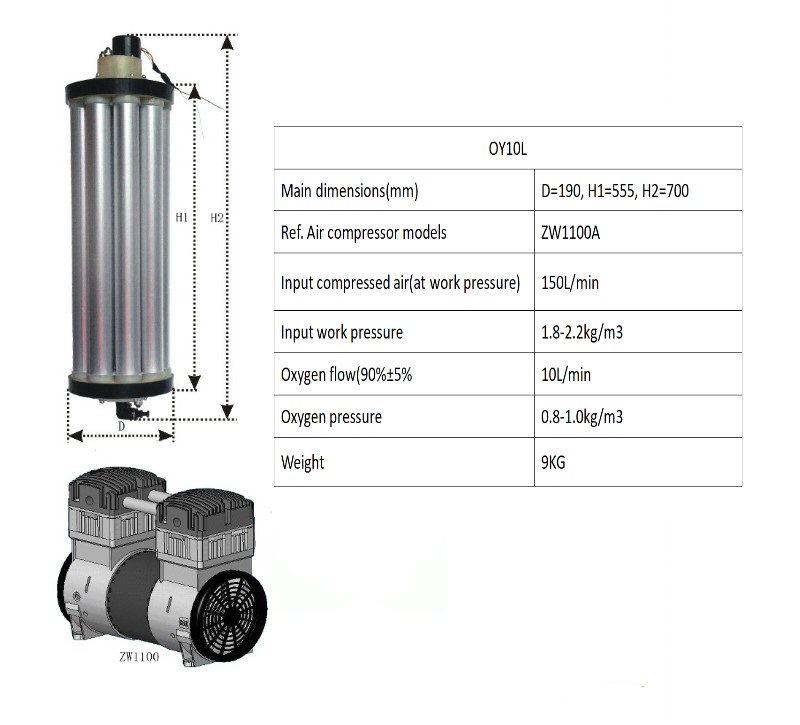

OY10L |

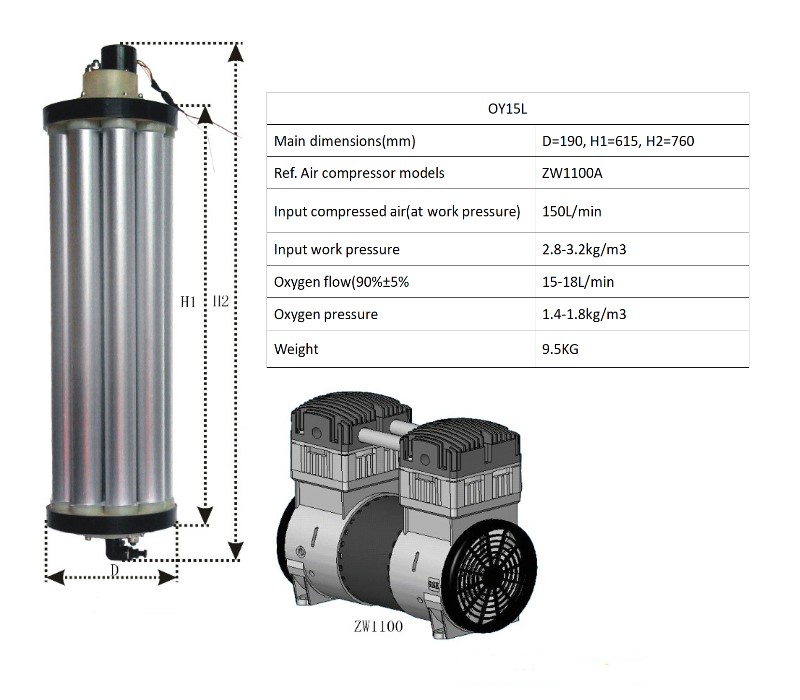

OY15L |
O2 output |
LPM | 3 | 5 | 7 | 10 | 15 |
O2
concentration |
% | 90%±3% | ||||
Air flow rate |
LPM | 36-45 |
60-75 |
90-115 |
150-200 |
180-220 |
Pressure(inlet) |
Mpa |
0.14-0.18 |
0.14-0.18 |
0.15-0.2 |
0.18-0.25 |
0.35 |
Pressure(outlet) |
Mpa |
0.06-0.08 | ||||
Temperatur |
℃ |
indoor temperature | ||||
Relative humidit |
% |
≤70%±10% | ||||
Noise |
Db |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
Dimensio |
mm |
Ф200×290 |
Ф200×410 |
Ф200×470 |
Ф200×500 |
Ф200×880 |
Net weigh |
KG | 14.10 | 17.87 | 19.13 | 21.30 | 32.51 |

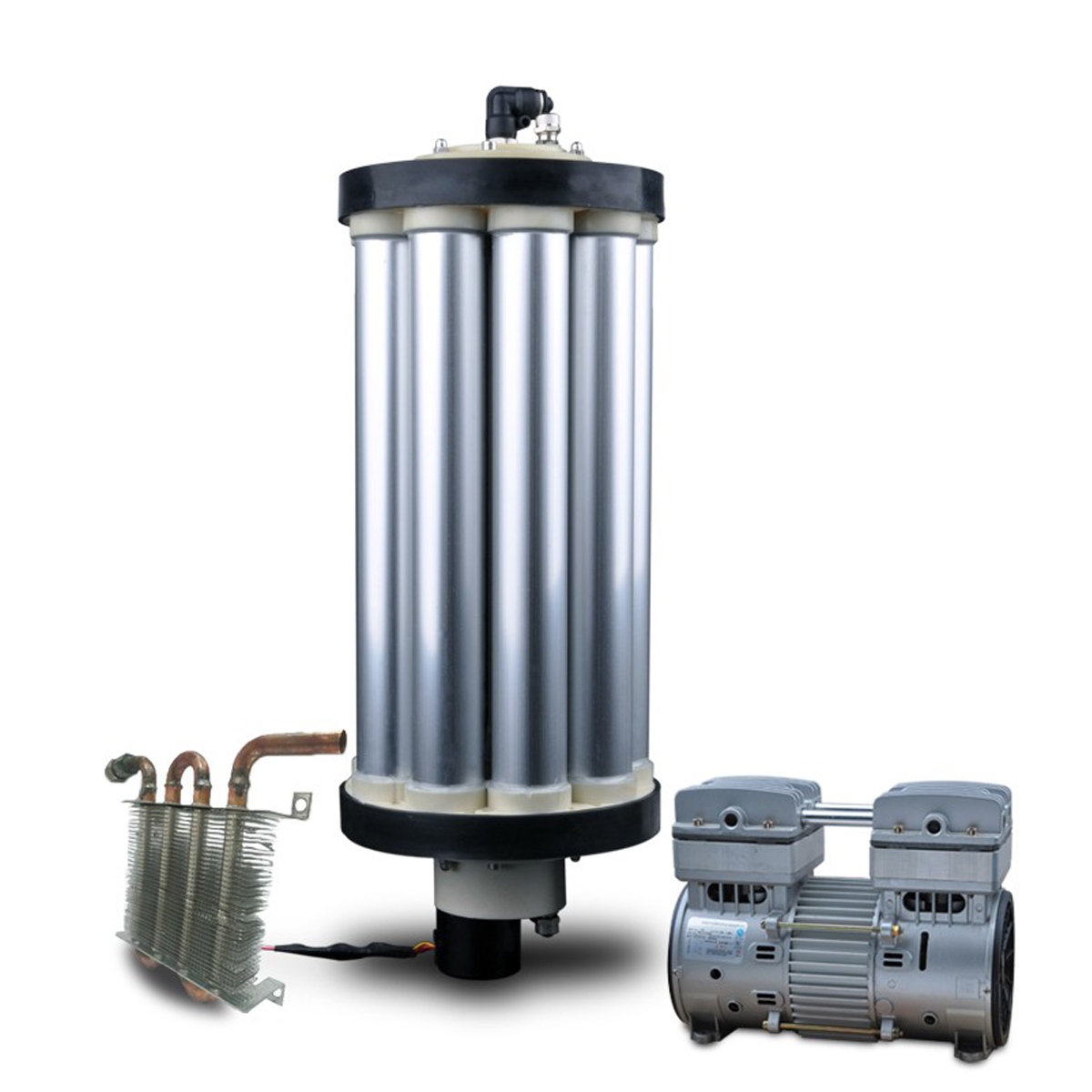

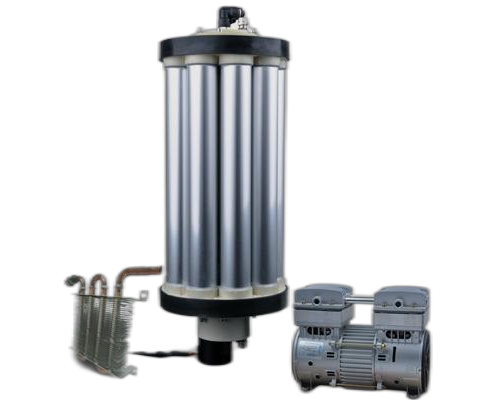

One complete set of oxygen concentrator including oxygen bed, air compressor, chiller, flowmeter
industrial oxygen generators portable oxygen concentrator
1- Patented products
OY series molecular sieve is an air separation plant that has already obtained a domestic patent.
2-Rational construction
Modular construction is the main point of our molecular sieve. Through the different combinations of oxygen units, the oxygen output can be from 3LPM to 15LPM, even higher.
3- The oxygen output is stable and continuously
4- Low-pressure oxygen production working pressure 1.5-2 Bar.
High Efficiency -Specifications
Features
1. The equipment uses Pressure Swing Adsorption (PSA) technology to separate
N2 and O2 from the air also can take off impurities in the air, to produce high-purity purity O2 gas.
2. It’s an ideal equipment to replace O2 cylinder or liquid O2, with lower cost to save
your money and time for transportation cylinders.
3. Modular construction is the main point of our molecular sieve. Through the
different combinations of oxygen units, the oxygen output can be from 1 LPM to 160 LPM is even higher.
4. Low pressure, working pressure less than 3 KG.
5. It’s a good choice to use for human health, oxygen supply for animals/plants, oxygen
supply for ozone machines, glass or metal treatment, etc.
Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given
What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?
For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?
What is your budget for the effect of the project? What equipment do we need to provide?
