industrial ozone generator-2
industrial ozone generator-1

Industrial ozone generator for water treatment

500G Industrial ozone generator for water treatment,High concentration, high ozone conversion rate of enamel tube , low power consumption, stable operation for a long time. In the process of sewage treatment, ozone has the functions of deodorization, sterilization, COD reduction, decolorization and bleaching.

MOQ: 1 set
FOB Price: Send your inquiry
Nearest Port: Guangdong, China
Ozone output:500-1000g/h custom


Health KQ-Tech

Industrial ozone generator for water treatment

Working voltage: AC220V/ 50HZ or AC110V/ 60HZ

Power consumption: 200-3000W Adjustable power

High voltage output: 3600V

Frequency waveform: sine wave

Ozone production: 100-500G/H

Ozone concentration (air source): 15~25MG/L

Ozone concentration (O2 source): 80~120mg/L

Cooling method:Water cooling for internal & external electrodes

We can customize the ozone system according to your budget

Industrial ozone generator for water treatment

1.    Electrodes:

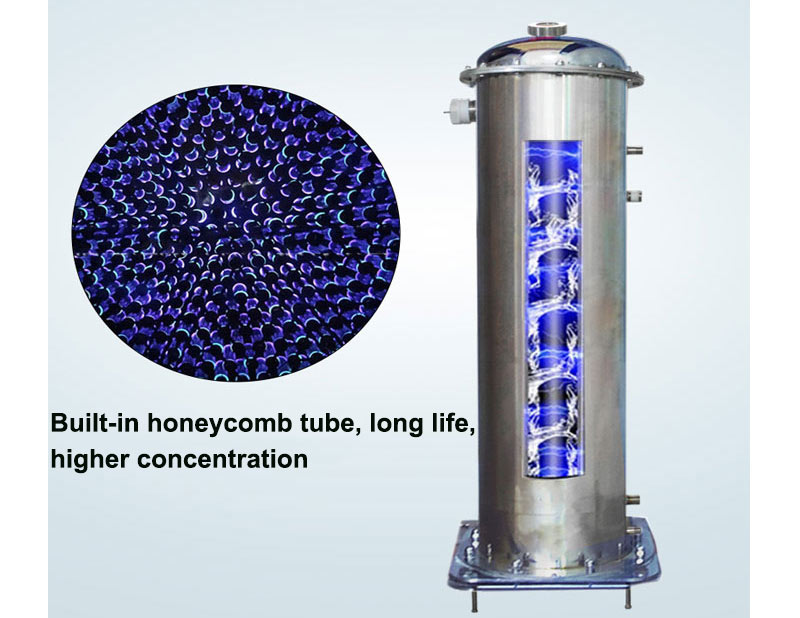

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output.

2.    Cooling way : Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.

3.    Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

4.    PLC controllable power supply : Good heat dissipation,High work efficiency, it can be control by PLC display, Input signal 0.8V~1.2V.

Industrial ozone generator for water treatment

Industrial ozone generator for water treatment



Overcurrent and overheating protection, automatic width adjustment, manual width adjustment Adjustable frequency, not afraid of short circuit, support continuous work

High efficiency (conversion efficiency over 90%), power Low heat generation, low noise (or no), stable performance

Industrial ozone generator for water treatment


Industrial ozone generator for water treatment is driven by a dedicated integrated block, with high frequency and IGBT output. The power tube of the new circuit has anti-peak suppression, which eliminates the damage of the transistor caused by the anti-peak and prolongs the service life.-Industrial ozone generator for water treatment


Focus On Safe Product

Health KQ-Tech
High standard
Hygienic and durable
Long lifespan
SS304 electrode
Low noise


Health KQ-Tech


Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given


What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?

Effect requirements

For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?


What is your budget for the effect of the project? What equipment do we need to provide?
