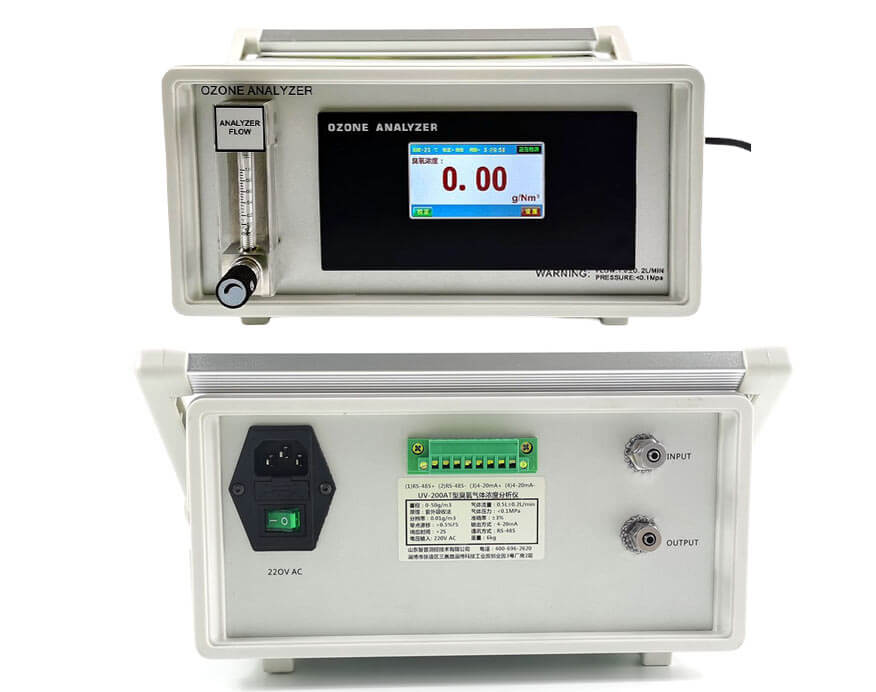

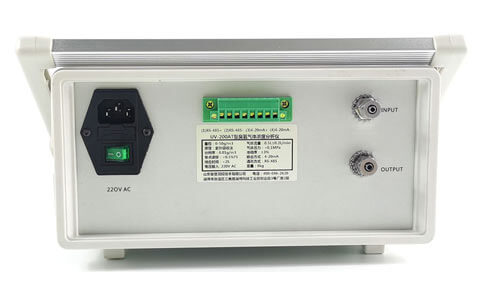

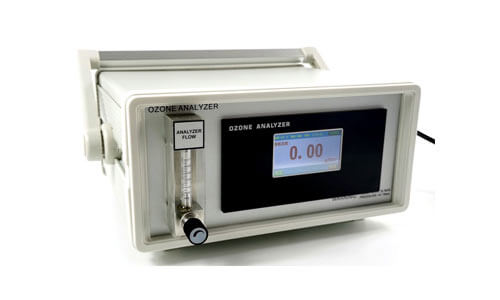

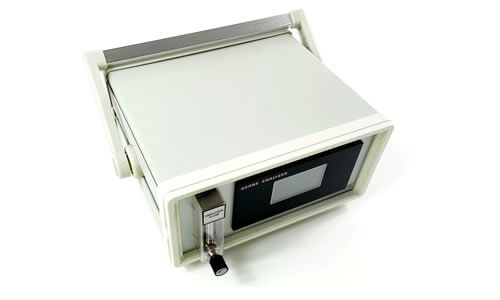

UV-200AT portable high concentration ozone analyzer 200mg/l a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection
Light source system: German long-life ultraviolet lamp (253.7 nm wavelength)；
Detection range：0-200 g/m3（extensible 0~350mg/L);
Display resolution：0.01 g/m3；
Input gas flow：0.5L+_0.2L/min；（extensible 0.1L~1.5L）
Input pressure：<0.1MPa；
Zero shift：<2%.FS ;
Responsive time：<1S
Sampling port diameter：Φ6（6mm*4mm）
The accuracy of detection：±3%
Communication mode： RS-485；
Output mode：4-20mA, linearity；
Power：AC220V/110V 50Hz/ 60Hz；
Size：260*160*230mm;
Weight: 4kg
Remaks：1mg/L=1g/m3=467PPM
UV-200AT portable high concentration ozone analyzer 200mg/l

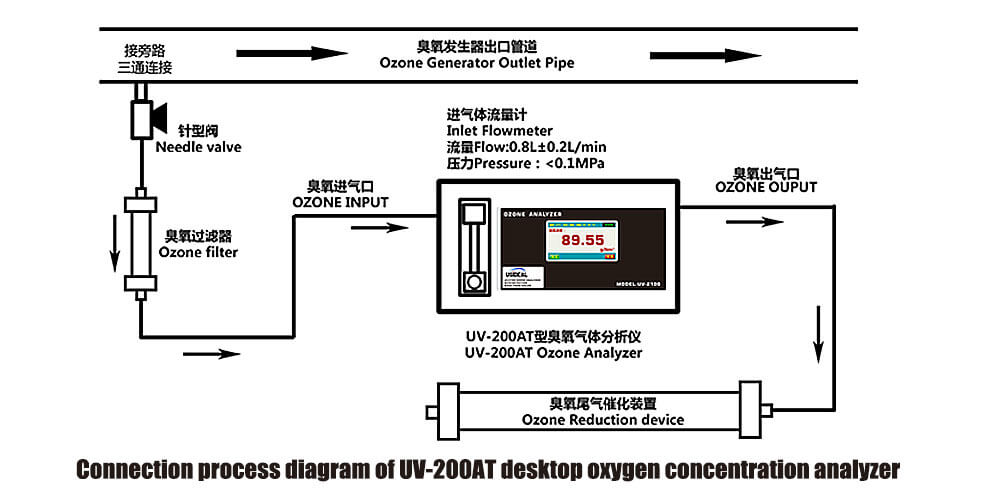

Detection principle: UV dual path absorption method, used for real-time detection of ozone generator outlet concentration or exhaust ozone concentration detection.
Product features: Embedded desktop ozone analyzer, patented technology, with automatic zero calibration function, dual light path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.
OVERVIEW
• Fast response speed
• High measurement accuracy
• Good stability and repeatability
• Various parameters can be customized by the user.
• Simple operation
high-precision ozone analyze, a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection...
The UV-2100 cheap ozone gas monitor is equipped with a touch screen operation interface, which displays the concentration of ozone gas in real-time. It has pressure and temperature compensation and display, and can set automatic zero calibration time and manual zero calibration mode. The high concentration (g/Nm3) range is equipped with a flow input function, which can display the output of the ozone generator in real-time. With two sets of relay signal outputs, users can freely choose between high and low alarm point signal output connections. The core component adopts a UV long-life light source system and a high transmittance quartz chip to ensure the stability of the zero point and prevent zero drift from affecting the accuracy of concentration detection. According to the pressure and impact resistant independent light cell structure designed based on foreign light cell technology, the gas flow rate, pressure, and flow rate remain unchanged during zero calibration operation to prevent the impact of airflow impact on zero calibration. Zero calibration operation can be completed without the need to close the ozone intake, ensuring that the equipment can operate continuously 24 hours a day.
Application fields: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, essence synthesis industry and other industries using ozone generators.
