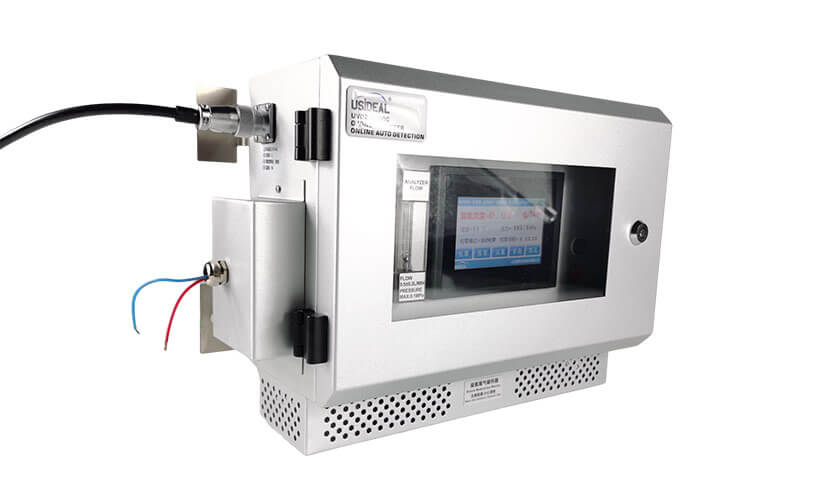

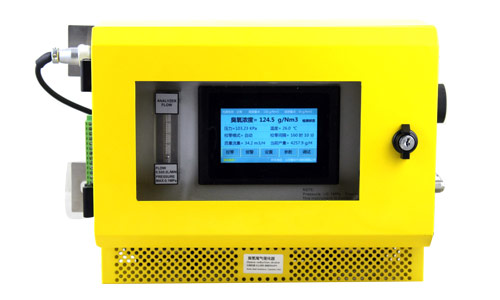

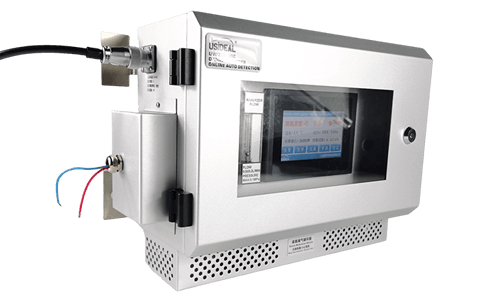

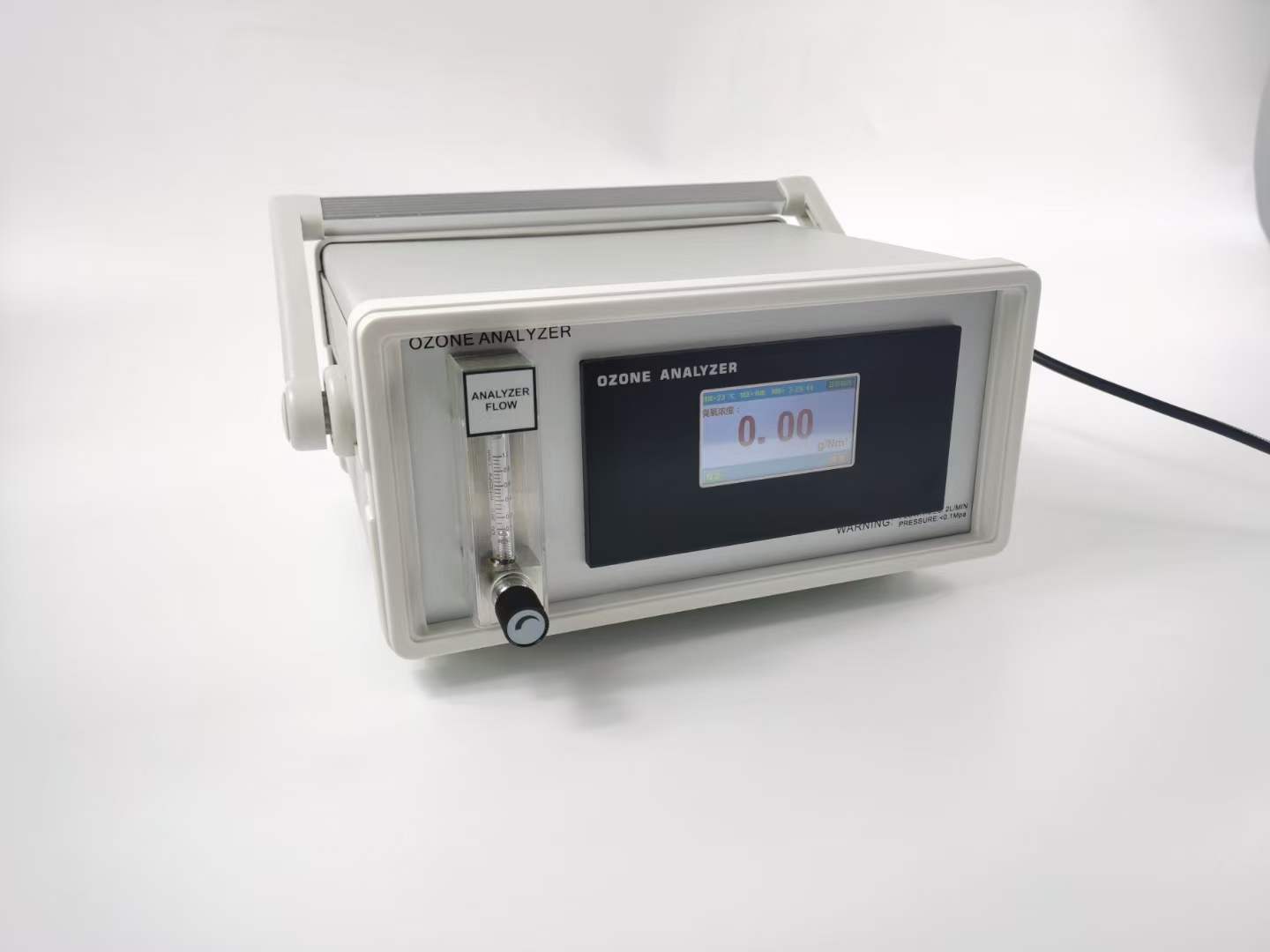

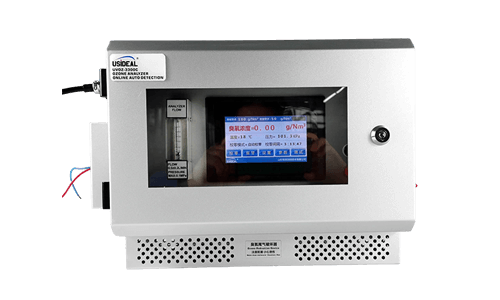

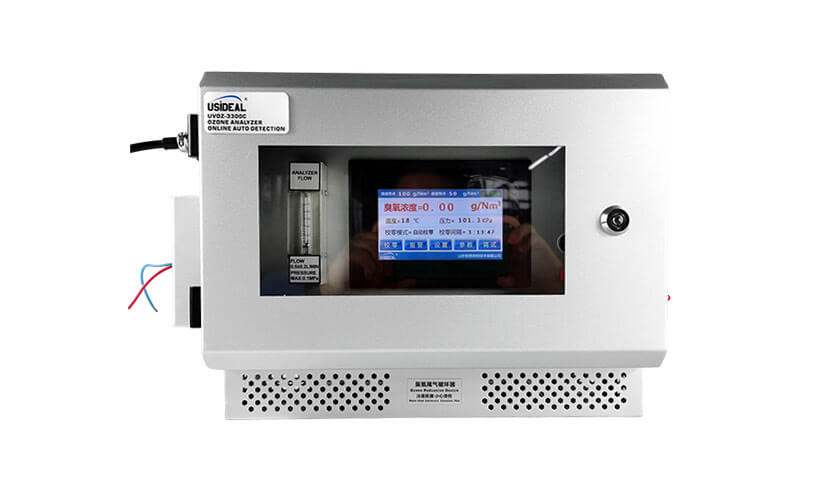

ozone gas detector,ozone gas monitor

ozone gas detector_Health KQ-Tech-Leading Manufacturer of ozone detection sensor- Custom Ozone Generator. Made in China. Factory Price ozone gas monitor. Quality warranty-ozone analyzer factory | high accuracy, stable data | Health KQ-Tech



MOQ: 1 set
FOB Price: Send your inquiry
Detection range:0-200 g/m3
Display resolution:0.1 g/m3
Inquiry

Specification

Health KQ-Tech

Light source system: German long-life ultraviolet lamp (253.7 nm wavelength);

Detection range:0-200 g/m3(extensible 0~350mg/L);

Display resolution:0.1 g/m3;

Input gas flow:1.2L+_0.2L/min;(extensible 0.1L~1.5L)

Input pressure:<0.1MPa;

Zero shift:<2%.FS ;

Responsive time:<1S

Sampling port diameter:Φ6(6mm*4mm)

The accuracy of detection:±3%

Communication mode: RS-485;

Output mode:4-20mA, linearity;

Power:AC220V/110V 50Hz/ 60Hz;

Size:330*230*160mm;

Weight: 6kg

Remaks:1mg/L=1g/m3=467PPM

ozone gas detector,ozone gas monitor

ozone gas detector,ozone gas monitor is a commonly used detection instrument, which adopts the principle of ultraviolet absorption method for measurement, and has the advantages of stable performance, flexible use, high reliability, and easy maintenance. ozone gas detector,ozone gas monitor is mainly used in ozone preparation workshop, chemical industry, petroleum, papermaking, textile, pharmaceutical and flavor and fragrance industry, water treatment, food and medicine sterilization workshop and other occasions.

ozone gas detector,ozone gas monitor

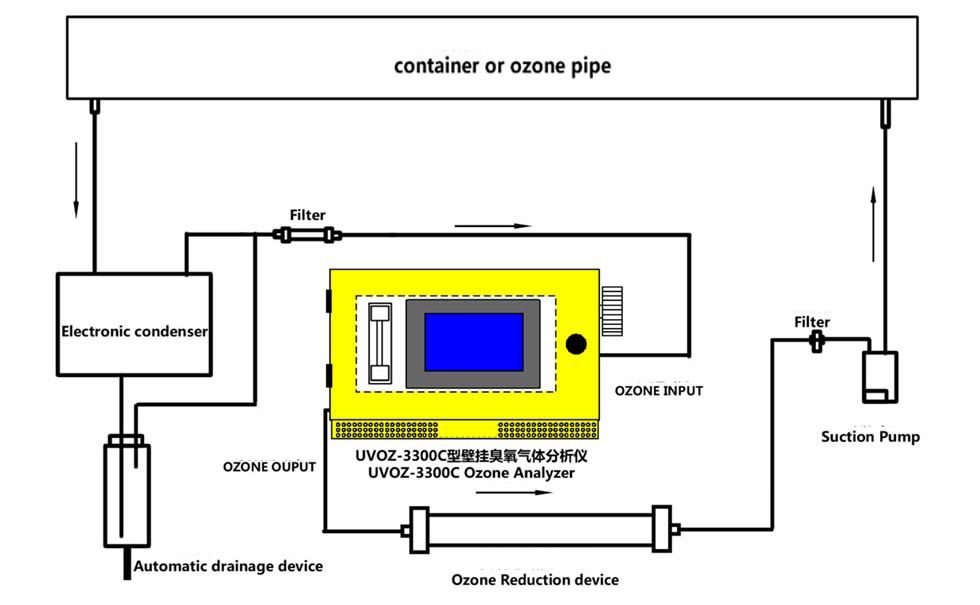

ozone gas detector,ozone gas monitor Detection principle: UV dual path absorption method, used for real-time detection of ozone generator outlet concentration or exhaust ozone concentration detection.

ozone gas detector,ozone gas monitor Product features: Embedded desktop ozone analyzer, patented technology, with automatic zero calibration function, dual light path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.

ozone gas detector,ozone gas monitor OVERVIEW
• Fast response speed
• High measurement accuracy
• Good stability and repeatability
• Various parameters can be customized by the user.
• Simple operation
high-precision ozone gas detector,ozone gas monitor, a variety of measurement range options, high accuracy, stable data, good repeatability, suitable for ozone factories, laboratories, ozone online detection

ozone gas detector,ozone gas monitor

ozone gas detector,ozone gas monitor

 Functional characteristics of ozone gas detector,ozone gas monitor

Portable, high precision, large range, high sensor sensitivity, fast data acquisition, real-time online measurement, low energy consumption, battery or AC adapter can be used. Special technology eliminates the interference of water vapor Built-in microprocessor with interactive menu, including multiple detection interval selection, 2 seconds, 10 seconds, 1 minute, 5 minutes, 1 hour. RS-232 time and date output, ozone concentration, internal temperature and pressure, and 3 auxiliary data, including external temperature, pressure and humidity.

ozone gas detector,ozone gas monitor



Customization

Health KQ-Tech

Design

Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given

Equipment

What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?

Effect requirements

For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?

Budget

What is your budget for the effect of the project? What equipment do we need to provide?
