ozone generator tube commercial ozone generator for water，High concentration, high ozone conversion rate of enamel tube , low power consumption, stable operation for a long time.
ozone generator tube commercial ozone generator for water
Working voltage: AC220V/ 50HZ or AC110V/ 60HZ
Power consumption: 200-3000W Adjustable power
High voltage output: 3600V
Frequency waveform: sine wave
Ozone production: 100-500G/H
Ozone concentration (air source): 15~25MG/L
Ozone concentration (O2 source): 80~120mg/L
Cooling method：Water cooling for internal & external electrodes
We can customize the ozone system according to your budget
Ozone has strong oxidizing properties and can oxidize various compounds. Therefore, ozone oxidation technology is widely used in water treatment.
Ozone oxidation technology has the following characteristics:
(1) Ozone not only has good rapid sterilization and disinfection properties, but also has a very high oxidative power to oxidize organic and inorganic compounds, and can remove substances that are difficult to remove by other water treatment processes.
(2) The reaction of ozone is complete and fast, so that the volume of the structure can be reduced.
(3) The remaining ozone will be quickly converted into oxygen, which can increase dissolved oxygen in water, with high efficiency, no sludge generation, and no secondary pollution.
(4) While improving purification effect, sterilization and disinfection, it can deodorize and deodorize.
(5) The electricity and air used to prepare ozone do not need to be stored and transported. The ozonation device occupies a small area and is simple to operate and manage. It is especially suitable for improving water quality and water quantity in the original water plant.
ozone generator tube commercial ozone generator for water

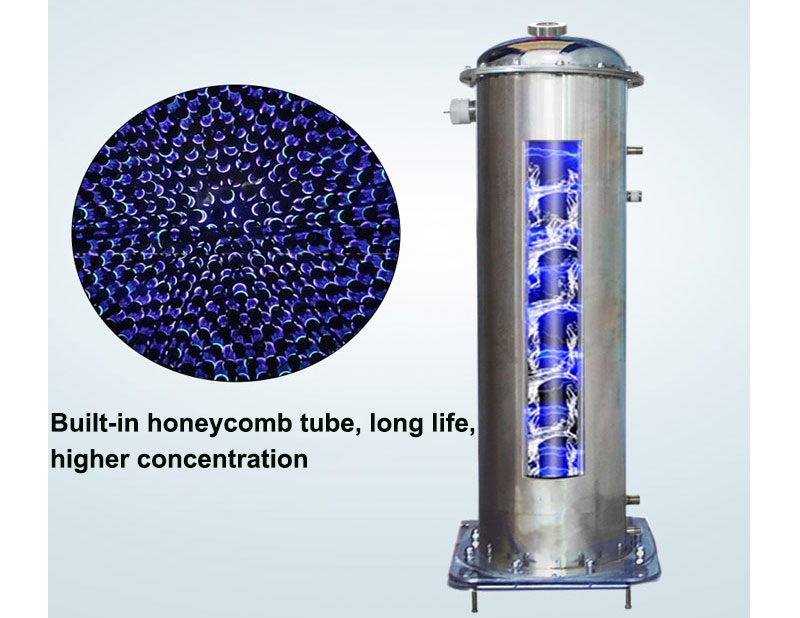

1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output.
2. Cooling way : Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

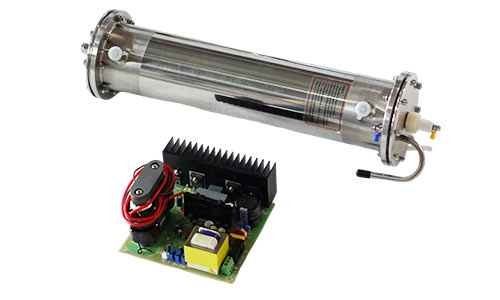

4. PLC controllable power supply : Good heat dissipation,High work efficiency, it can be control by PLC display, Input signal 0.8V~1.2V.
Overcurrent and overheating protection, automatic width adjustment, manual width adjustment Adjustable frequency, not afraid of short circuit, support continuous work
High efficiency (conversion efficiency over 90%), power Low heat generation, low noise (or no), stable performance
Industrial ozone generator for water treatment is driven by a dedicated integrated block, with high frequency and IGBT output. The power tube of the new circuit has anti-peak suppression, which eliminates the damage of the transistor caused by the anti-peak and prolongs the service life.-ozone generator tube commercial ozone generator for water
Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given
What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?
For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?
What is your budget for the effect of the project? What equipment do we need to provide?
