High-frequency high-voltage ozone tube generator spare parts power supply for ozone generator system,Ozone tube use imported material of high pure quartz, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.More details,please contact with us!

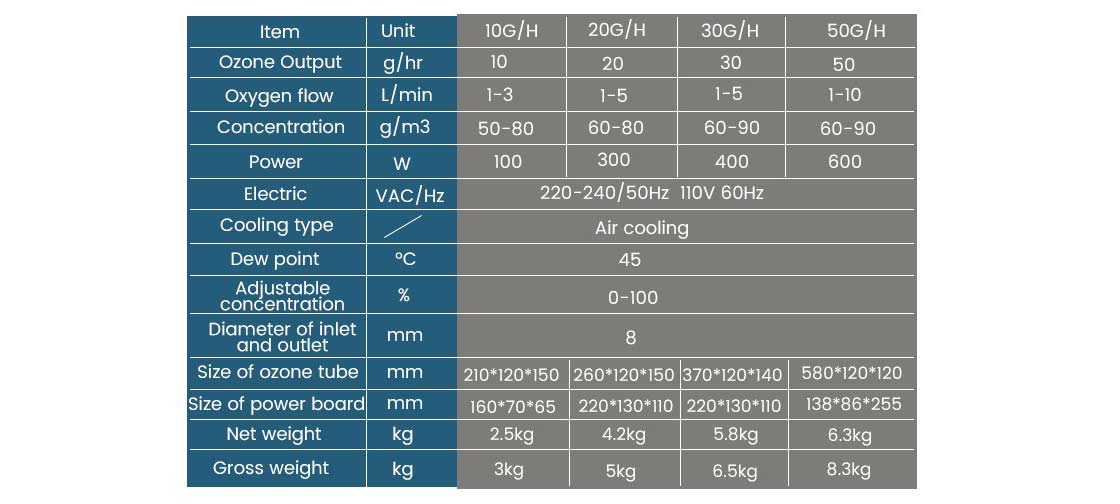

Working voltage: AC220V-50HZ or AC110V/60HZ
Power consumption: 80W
High voltage output: 6KV/12KHZ
Frequency waveform: sine wave
Ozone production: 10G/H
Ozone tube: 230*80*90mm
Power supply: 160*66*45mm
Ozone concentration (air source): 15~25MG/L
Ozone concentration (O2 source): 60~80mg/L

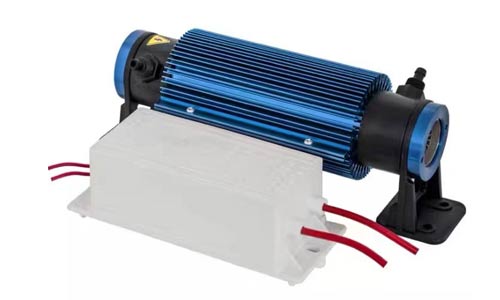

ozone tube generator spare parts power supply 110V 220V
1.Extremely low rate of ozone decay & high ozone concentration.ozone tube generator spare parts power supply
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.（ozone tube generator spare parts power supply 110V 220V）
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

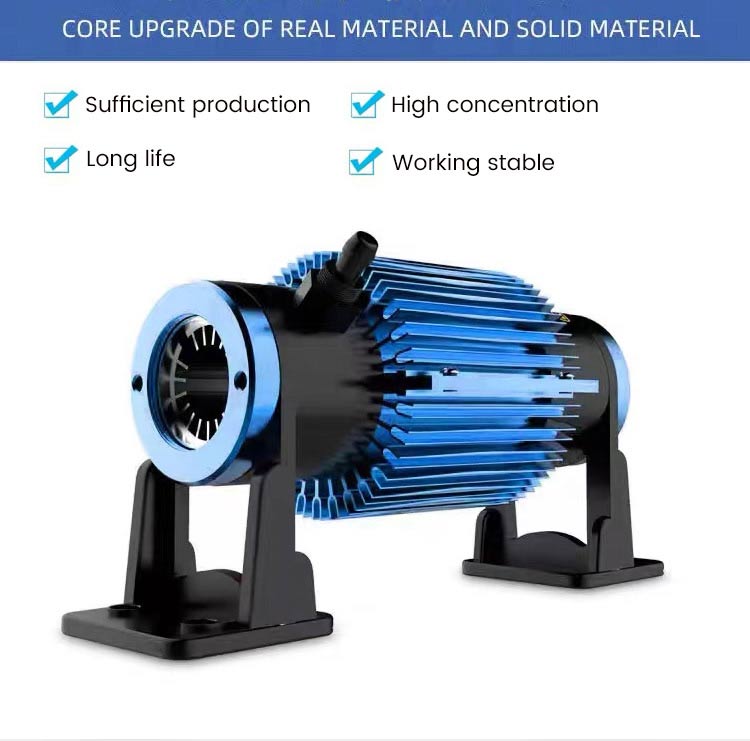

Thicken aluminum alloy heat sink（ozone tube generator spare parts power supply 110V 220V）
Thicken aluminum alloy heat sink, fast heat dissipation, not easy to corrode, wear-resistant and durable, slow heating speed
PLC control type ozone tube generator spare parts power supply

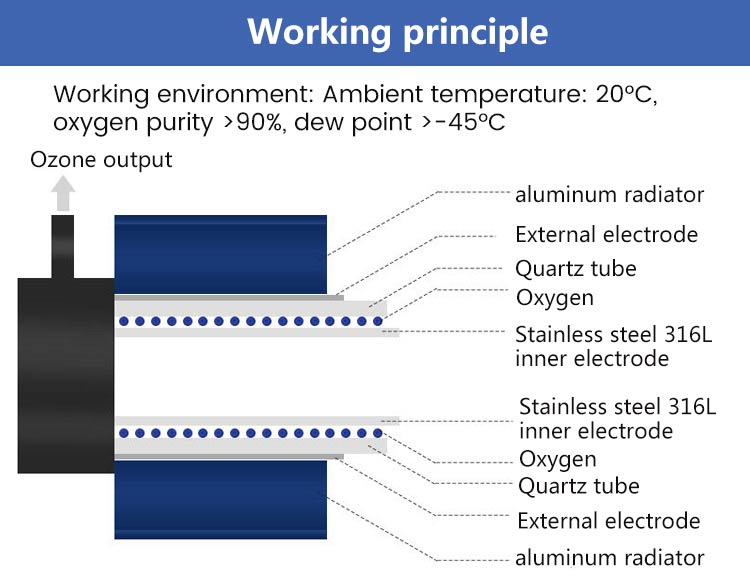

It is adopted Imported material of high pure silica quartz external electrode,SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connections which are best anti-oxidation material for ensuring several years running.
Patented ozone tube generator spare parts power supply

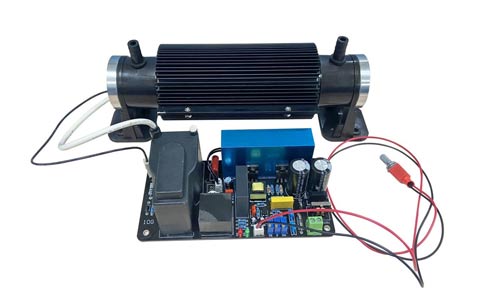

High-frequency ozone tube generator spare parts power supply unit, low energy consumption, high efficiency, with over-current and overheating protection, support for long-term continuous work, ensure product quality, good electrical conductivity, reduce interference.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
More details,please contact with us!
Do you have a design draft? What is the local normal temperature, humidity, and sea level? The more and more detailed the parameters provided, the more accurate the solution given
What equipment is required in the whole project? What equipment do you already have and what equipment do you need? What are the parameters of the existing equipment?
For the whole project, what kind of effect do you want to achieve? What needs to be corrected of the project? What are the third-party acceptance criteria?
What is your budget for the effect of the project? What equipment do we need to provide?
