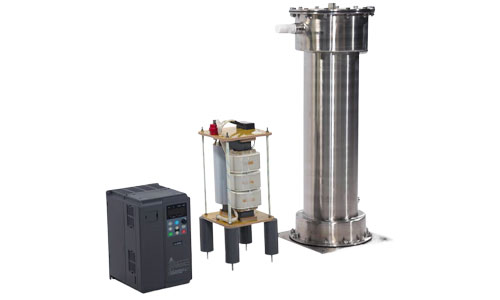

Industrial Ozone Generator power supply (2)

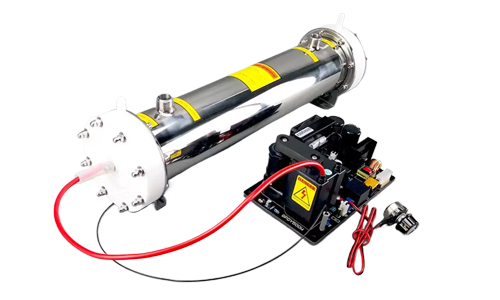

20G30G ozone generator accessories png

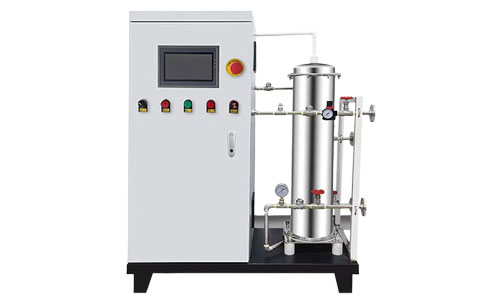

swimming pool ozone water treatment system

Industrial Ozone Generator power supply

Imported quartz pipes and high -precision 316L stainless steel discharge pipes, high ozone concentration, stable ozone output. Apply to waste gas and wastewater to Industrial Ozone Generator power supply

MOQ: 1set
FOB Price: Send your inquiry
Rated power:2000W
Product material:316 stainless steel
Inquiry

Specification

Health KQ-Tech

Working voltage: AC220V-50HZ or AC110V/60HZ

Power consumption: 1000-3000W

High voltage output: 6KV/12KHZ

Frequency waveform: sine wave

Ozone production: 100-300G/H

Ozone tube: Multiple specification options

Power supply: Multiple specification options

Ozone concentration (air source): 15~25MG/L

Ozone concentration (O2 source): 60~80mg/L

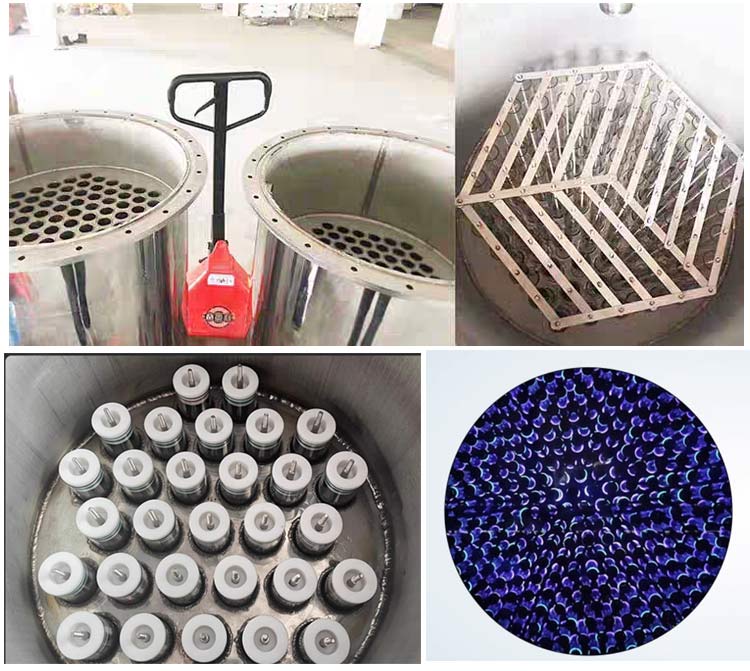

1. Ozic discharge outdoor electrode is made of 316 stainless steel. The occurrence unit of ozone is discharged in honeycomb -like discharge. Non -glass discharge bodies -high -voltage electrodes and medium tubes are integrated structures. Each ozone occurs with an independent high -voltage fuse, which guarantees the overall, reliable and effective work of the discharge chamber as a whole.

2. The Industrial Ozone Generator power supply is a device that converts the input power supply to the intermediate frequency high -voltage power supply, also known as the "power supply unit", which makes the ozone incurred device form a high -voltage electric field. Ozone power devices mainly include rectifier inverter circuits, electric anti -resistors, high -voltage transformers, control devices and display operation drives. The rectifier inverter circuit converts the power supply supply to the mid -and and high -frequency AC power supply required by the light discharge. After the high -voltage transformer is up voltage, the mid -frequency high -voltage power supply is transported to the ozone -occurring device.

Industrial Ozone Generator power supply (3)

Industrial Ozone Generator power supply

3. The Industrial Ozone Generator power supply control device is designed as a single -chip microcomputer, which uses the CPU to implement digital control, set the automatic soft startup function, and automatically start and turn off the ozone power device according to the set program. The Industrial Ozone Generator power supply device sets multiple protection devices to ensure the reliability and stability of the whole machine, and design a protective circuit or a safe circuit for overall protection.

4. The Industrial Ozone Generator  uses water cooling. The calories released during the effective area of ​​cooling water can be used when the heat discharged. The cooling water can be used and cools through the external process to ensure the ozone output and concentration stability.

5. The output of Industrial Ozone Generator can be adjusted according to the specific conditions of the user and has multiple protection functions to prevent damage to the generator in the case.Industrial Ozone Generator power supply
