Ozone generator water treatment of Applications

The 300g ozone generator uses an extremely stable, highly efficient, and ultra-long-life titanium-gold dehydroxylated quartz tube discharge unit, which has extremely high discharge uniformity, large ozone production, and high concentration. The unique ozone honeycomb pipeline design and the outer shell are made of stainless steel, which has super strong oxidation resistance, and the ozone machine has a higher concentration, stable quality, and long service life.

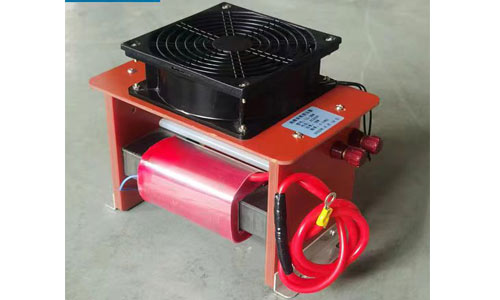

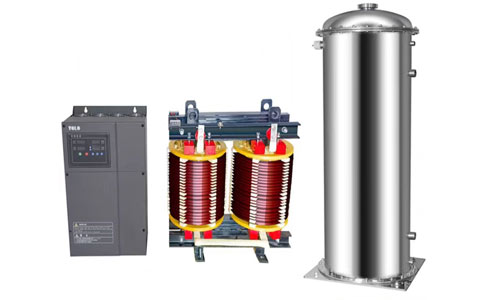

300G ozone generator tube high voltage power supply Technical advantages
● The ozone discharge chamber and the outer chamber (electrode) are made of stainless steel, and the ozone generating units are arranged in a honeycomb shape. Each ozone generating unit has an independent high-voltage fuse, which ensures the overall safe, normal, reliable, stable and effective operation of the discharge chamber.
● The power supply and electronic control chassis is also made of stainless steel. The operating system is mechanically indicated or PLC controlled (optional). It has multiple fault point monitoring functions, including mainboard temperature detection, high-voltage package temperature detection, cooling water temperature detection, PSA system gas source temperature detection, ozone generating pipe return water detection, system working current detection, etc. After the system detects a fault, the equipment stops running and the corresponding fault is displayed on the display;

● Manual/automatic operation: The equipment can be operated manually on the display or automatically by connecting to an external signal;
● The ozone generation amount is adjustable from 0 to 100%;
● Standard 4 to 20 mA signal access port (the first in the ozone industry), the ozone generation amount of the equipment can be automatically and accurately controlled by various external detectors. This technology is the first in the ozone industry and is world-leading;
● The main circuit components are Siemens products (IGBT, IGBT module);
This series of products has advanced new technologies and new processes. The products are easy to operate, compact in structure, stable in performance, high in ozone production and concentration, and easy to maintain.

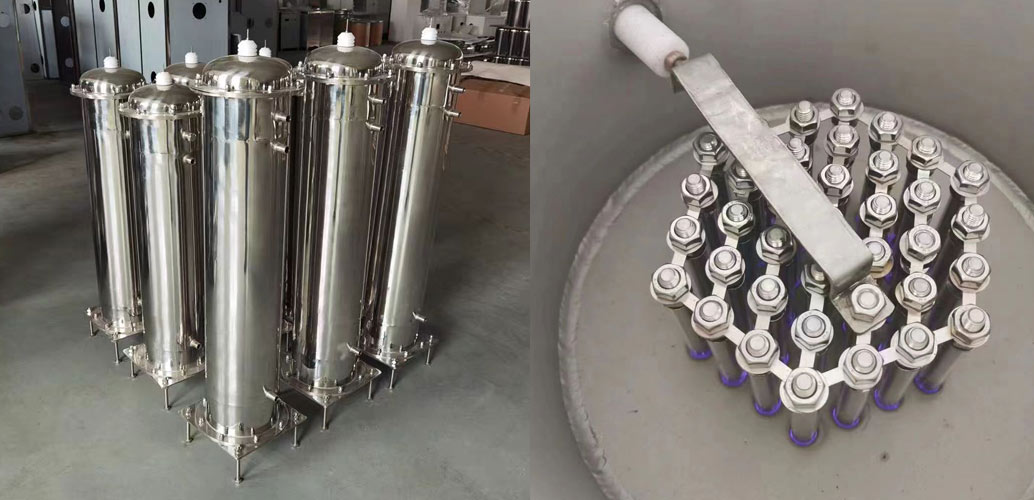

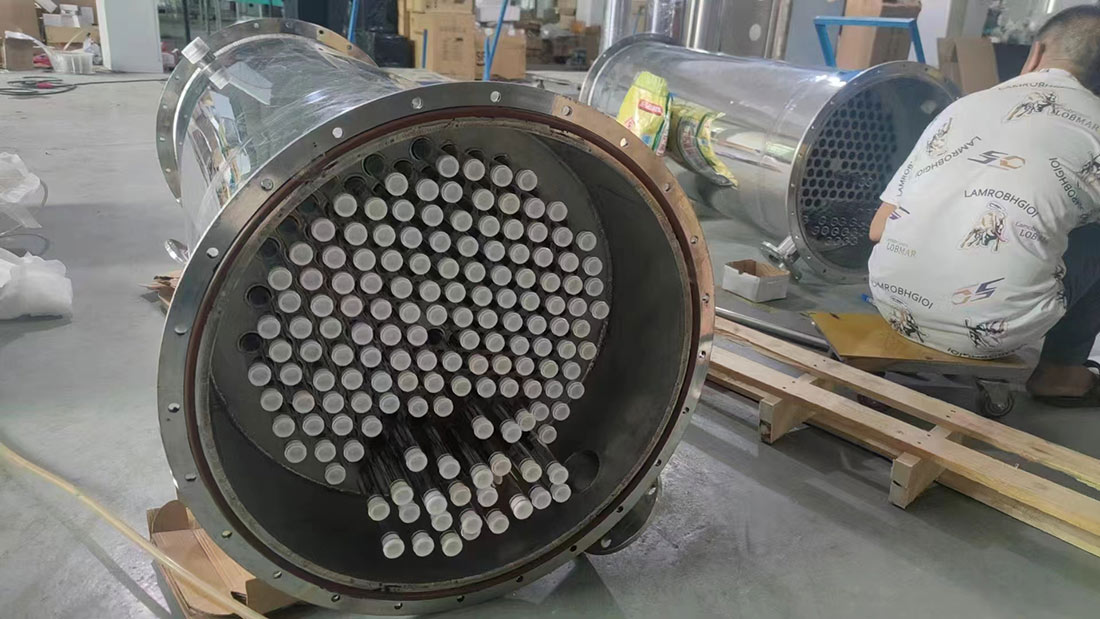

Honeycomb ozone tube:
Multiple ozone tubes are combined, and the internal shape is close to the shape of a honeycomb, hence the name honeycomb ozone tube. The dielectric material is high-purity dehydroxylated quartz tube, with a dehydroxylation rate of less than 10ppm and a SiO2 content of more than 98%. It can withstand a temperature of 1600 degrees and a voltage of 30KV, which is much higher than the peak high voltage of 7KV produced by the matching high-frequency high-voltage power supply, and will not be broken down and burned by high voltage. Inner electrode: titanium alloy, corrosion resistance is better than 316 stainless steel. Under high-voltage and high-frequency continuous discharge, it will not be oxidized, blackened, rusted, or deformed after 5 years of use; discharge gap: 0.35MM; sealing material: stainless steel flange, polytetrafluoroethylene plate plus fluorine rubber ring, anti-oxidation and acid-alkali resistance, with a service life of up to 8 years.

​

Equipment advantages:
1. This equipment uses SPA pressure swing adsorption to exhaust nitrogen from the air to extract high-concentration oxygen as a gas source to produce ozone, and the output ozone concentration is high, which is 6-10 times the ozone concentration produced by using air as a gas source.

2. The ozone discharge chamber is our company's patented technology. The outer electrode is made of stainless steel, and a high-concentration ozone tube is used. The discharge chamber adopts a fully sealed technology as a whole, which is reliable in operation.

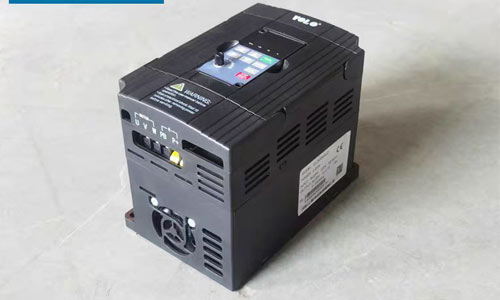

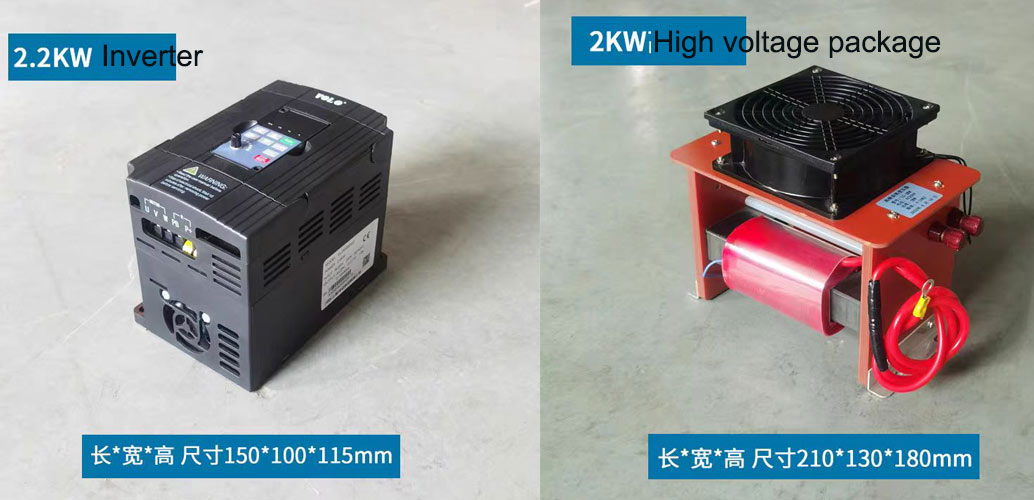

3. The power supply unit (PSU) is the core technology of this series of models, including two major processes of frequency conversion and boosting. It is equipped with an automatic soft start function, has a strong load capacity and multiple protection functions, and is efficient and stable.

​

300G ozone generator tube high voltage power supply  Product use:

1. Disinfection and sterilization of drinking water, water plants, pure water, direct drinking water, and beverage water;

2. Deep well water, municipal water supply, rural drinking water, reclaimed water, sewage, wastewater, waste gas, swimming pool water treatment and hospital sewage treatment, etc.

3. Water disinfection in the food industry and pharmaceutical industry, and cleaning and disinfection of raw materials, processing equipment and sites;

5. Wastewater bleaching, decolorization and COD in the chemical industry;

6. Water treatment in aquaculture; disinfection and sterilization of fresh water and seawater; breeding and breeding: chicken farming, fish farming, vegetable greenhouses, etc.
