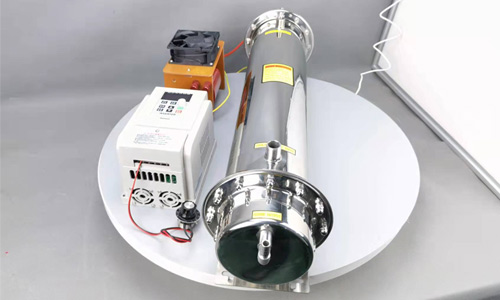

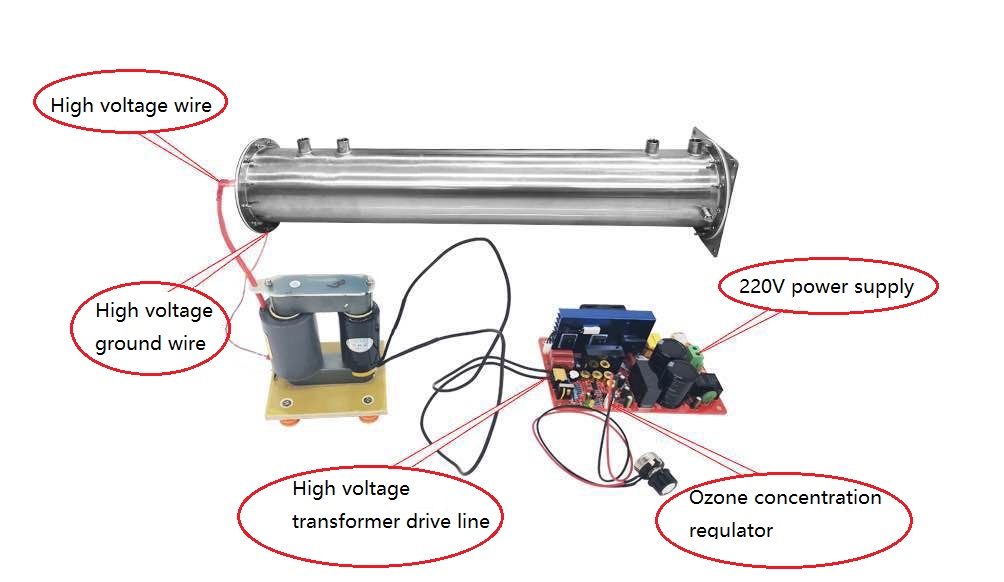

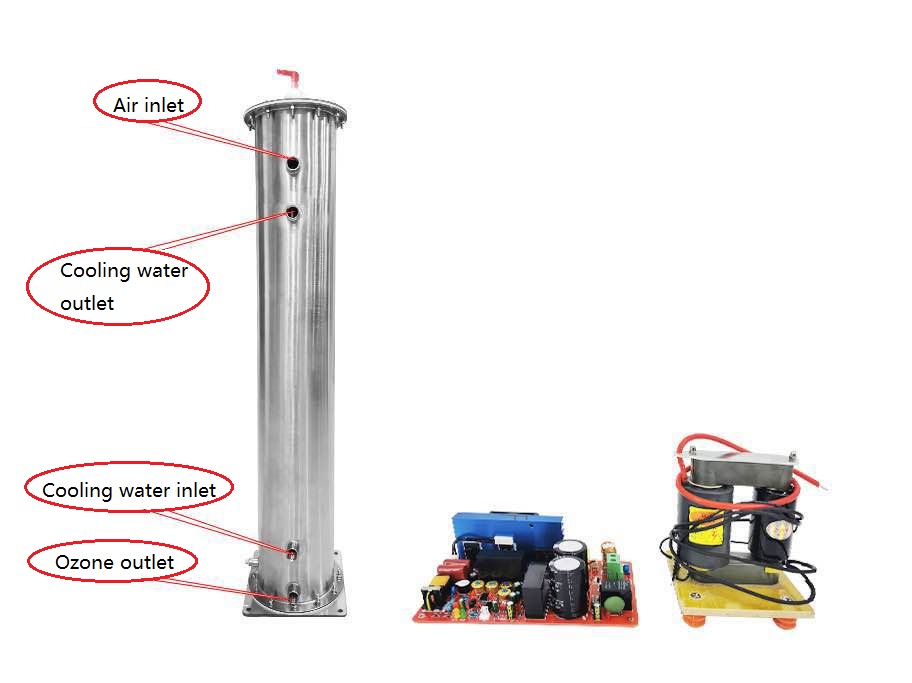

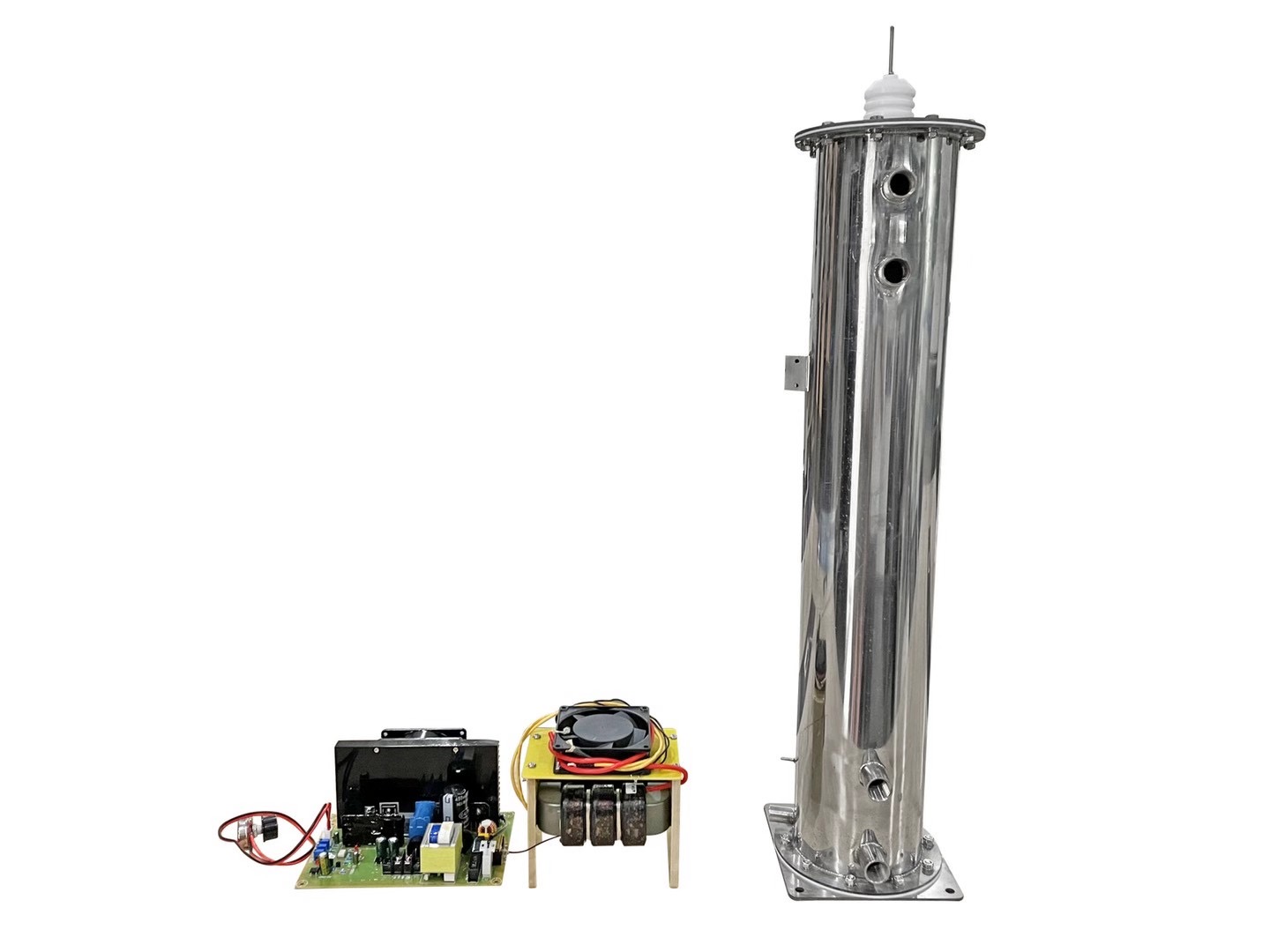

30-100g water cooling ozone generator quartz honeycomb tube

Product Description

Technology: Corona Discharge technology to produce ozone.

Material of ozone tube

1. High pure silica quartz external electrode,

2. SS 316L of the internal electrode

3. Teflon connectors,

4. Corrosion-resistant high purity fluorine rubber ring seal,

5. Air cooling aluminum radiator etc.


Inquiry

Specification

Health KQ-Tech
30G/H ozone accessories Model: H-30GW
Power consumption: 200W
Ozone tube size: 580*350*160MM
Power board size: 204*136*100mm
Voltage: 220V/50Hz
Adjustable: 0-200W
Water cooling
50G/H ozone accessories Model: H-50GW
Power consumption: 300W
Ozone tube size: 635*110*160MM
Power board size: 204*136*100mm
Voltage: 220V/50Hz
Adjustable: 0-350W
Water cooling
60G/H ozone accessories Model: H-60GW
Power consumption: 600W
Ozone tube size: 550*113*160MM
Power board size: 230*150*90mm
Voltage: 220V/50Hz
Adjustable: 0-600W
Water cooling
80G/H ozone accessories Model: H-80GW
Power consumption: 1000W
Ozone tube size: 775*110*100MM
Power board size: 230*90*150mm
Voltage: 220V/50Hz
Adjustable: 0-800W
Water cooling
100G/H ozone accessories Model: H-100GW
Power consumption:1000W
Ozone tube size: 1100*120*120MM
Power board size: 280*234*140mm
Voltage: 220V/50Hz
Adjustable: 0-1000W
Water cooling
